Example plans · 2 plans

1 bedroom house plans

A 1-bedroom house is a small home with one bedroom, a living area, a kitchen and a full bath, often a starter home, a home to retire in or a guest house. Our two plans have 650 and 900 sq ft of finished space.

Plans
2
drawn to scale
Sizes
650 to 900 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

26′25′LIVING ROOM186.1 sq ftKITCHEN140.4 sq ftBEDROOM122.1 sq ftHALLBATH59.4 ft²MUDROOM ANDLAUNDRYCLOSETFRONT PORCH87 sq ft
Compact 1 bed house, 26 × 25 ft

The plans

1 bedroom house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

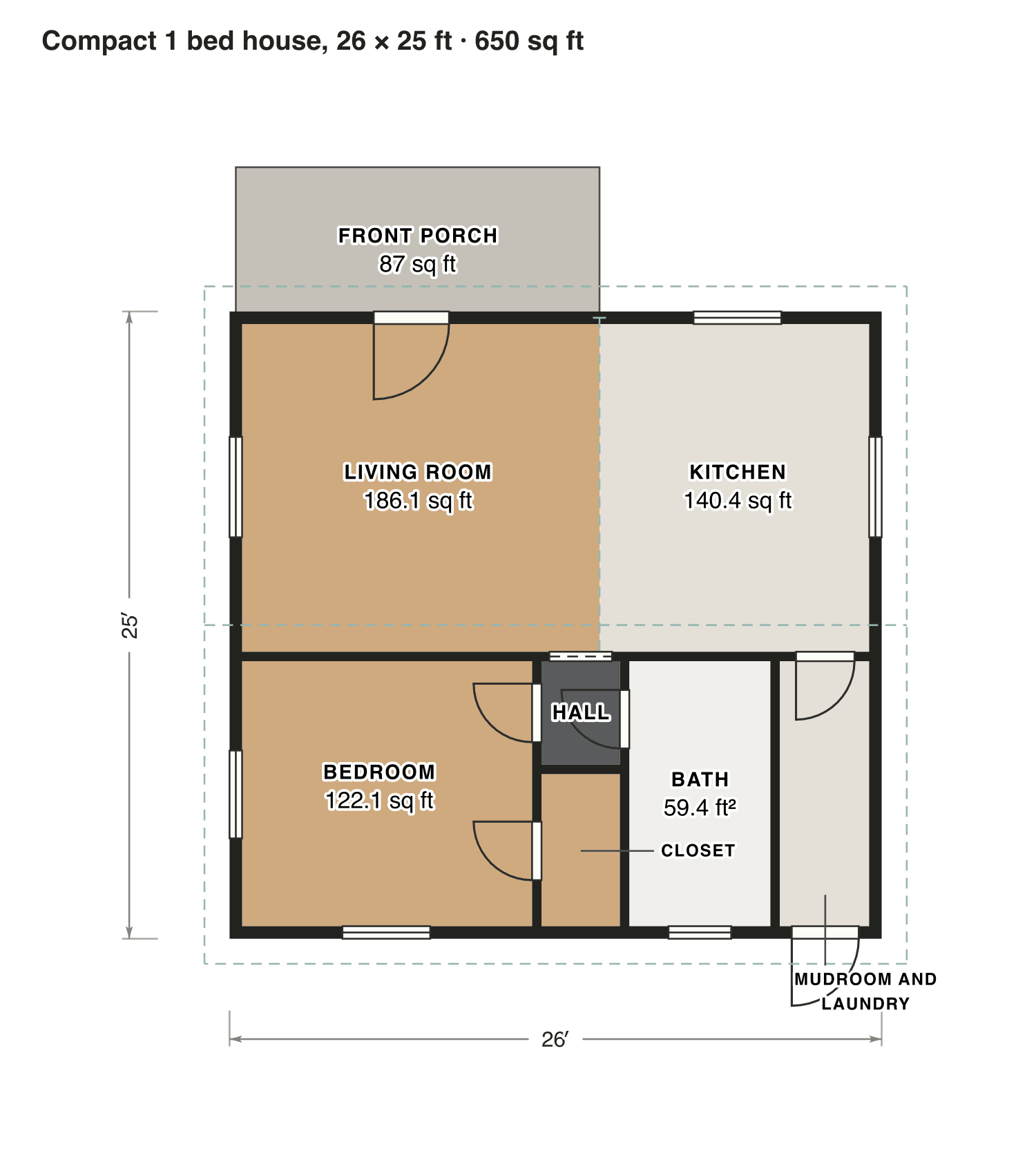

Compact 1 bed house, 26 × 25 ft

Living room and kitchen share the front half. A short hall at the back leads to the bedroom, its closet and a long bath, and a mudroom with laundry opens to the backyard.

Finished area
650 sq ft
60 m² · ANSI Z765
Not counted
87 sq ft
listed apart, see below
Layout
1 bed, 1 bath
one floor
  • 87 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

Compact 1 bed house, 26 × 25 ft floor plan: 650 sq ft (60 m²) finished, 1 bed, 1 bath · one floor, drawn to scale with every room labeled.
26′ × 25′ outsideExample floor plan, not a construction drawing

Rooms · Compact 1 bed house, 26 × 25 ft

Room areas, Compact 1 bed house, 26 × 25 ft
RoomFloorSq ftCounts as
Living roomFloor 1186Finished, counts
KitchenFloor 1140Finished, counts
BedroomFloor 1122Finished, counts
HallFloor 113Finished, counts
ClosetFloor 119Finished, counts
BathFloor 159Finished, counts
Mudroom and laundryFloor 138Finished, counts
Front porchOutside87Outside, not counted
Finished area, ANSI Z765650outside the walls

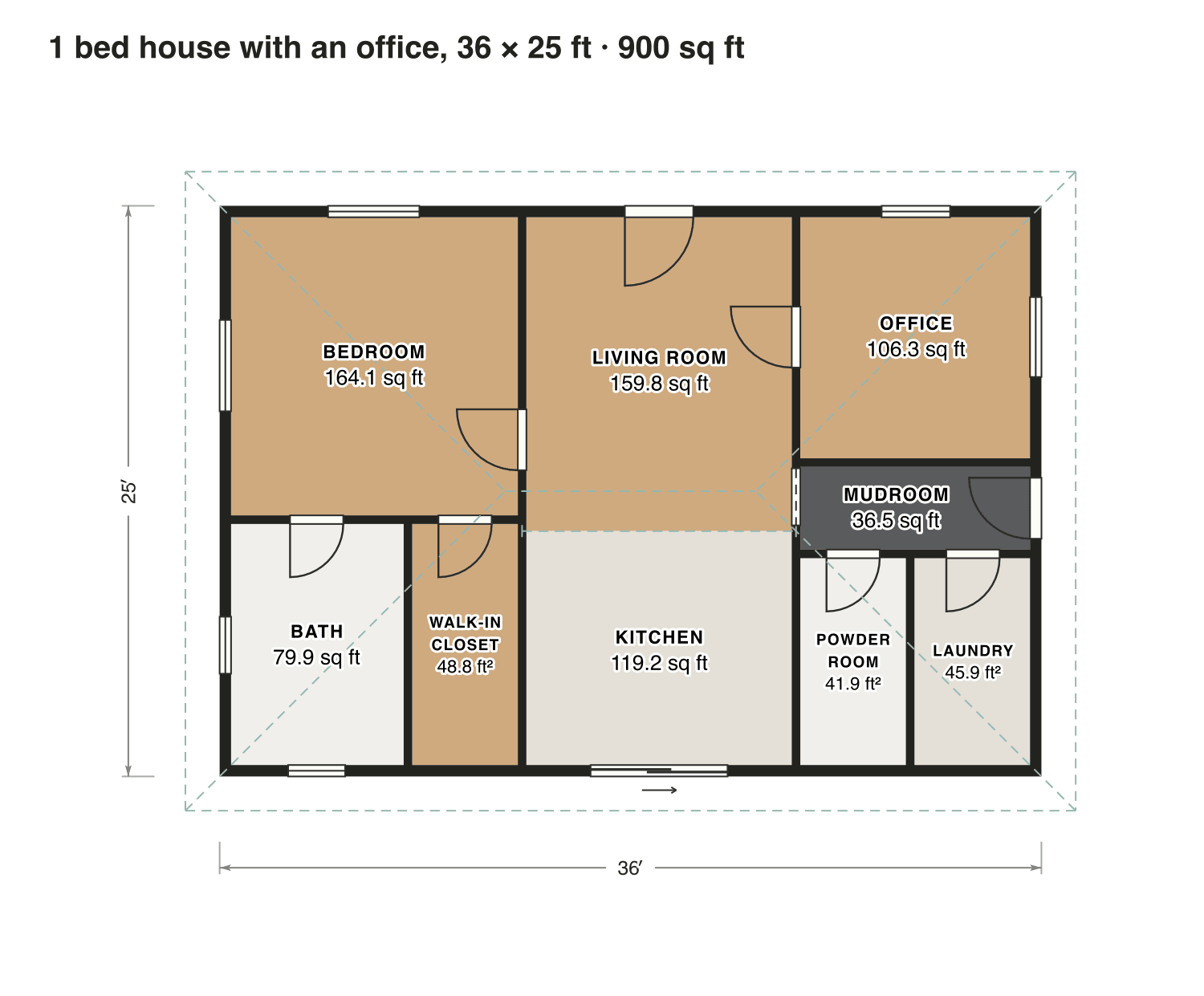

1 bed house with an office, 36 × 25 ft

The bedroom suite with a walk-in closet keeps to the left side. On the right sit a home office, a powder room for guests, a laundry and a mudroom with its own side door.

Finished area
900 sq ft
84 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
1 bed, 1.5 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

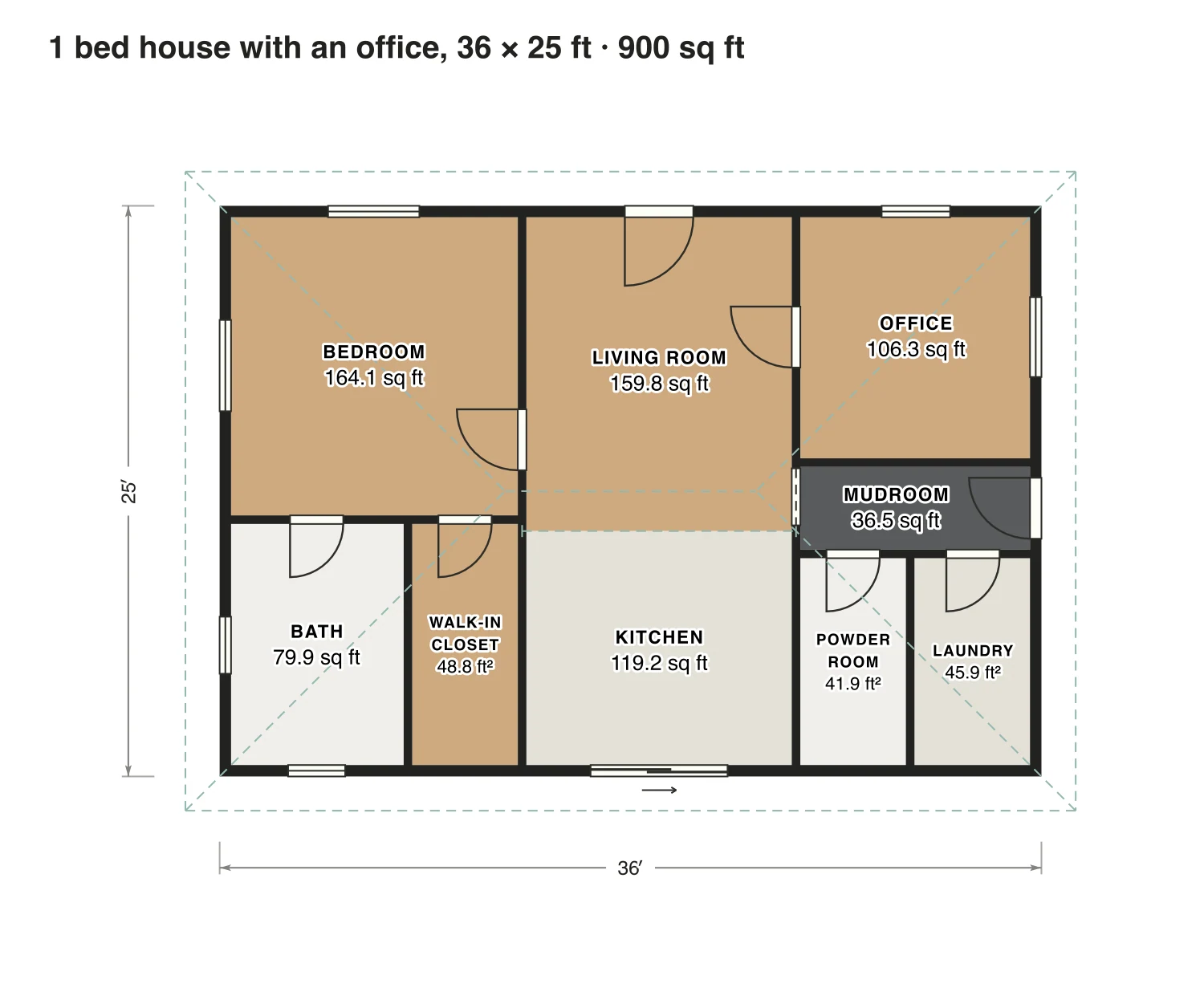

1 bed house with an office, 36 × 25 ft floor plan: 900 sq ft (84 m²) finished, 1 bed, 1.5 bath · one floor, drawn to scale with every room labeled.
36′ × 25′ outsideExample floor plan, not a construction drawing

Rooms · 1 bed house with an office, 36 × 25 ft

Room areas, 1 bed house with an office, 36 × 25 ft
RoomFloorSq ftCounts as
BedroomFloor 1164Finished, counts
BathFloor 180Finished, counts
Walk-in closetFloor 149Finished, counts
Living roomFloor 1160Finished, counts
KitchenFloor 1119Finished, counts
OfficeFloor 1106Finished, counts
MudroomFloor 136Finished, counts
Powder roomFloor 142Finished, counts
LaundryFloor 146Finished, counts
Finished area, ANSI Z765900outside the walls

What counts

What counts in the square footage

The covered porch at the front door of the smaller plan is 87 sq ft, but it lies outside the walls, so ANSI Z765 leaves it out. Closets, the hall and the laundry are finished rooms inside the house, and they do count.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

1 bedroom house plans: questions

About these 1-bedroom house plans. Can’t find your answer? Send us a message.

What is a good size for a 1 bedroom house?

Somewhere between about 500 and 900 sq ft suits one or two people. Under about 400 sq ft most people would call it a tiny house; our plans have 650 and 900 sq ft.

Can a 1 bedroom house work as a guest house or ADU?

Yes, if local rules allow a second home on the lot. Many cities cap an ADU by floor area, so check that limit against the finished area of the plan before you start.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
