2 story house plans

A two-story house puts the living areas on the main floor and most bedrooms upstairs. Both finished floors count; openings to the floor below, like a two-story foyer, don’t. Our plans have 2,216 to 2,462 sq ft. See the 2 story house plans below, drawn to scale and measured room by room.

Plans
3
drawn to scale
Sizes
2,216 to 2,462 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

58′ 6″30′ 6″ENTRY129.7 sq ftLIVING ROOM346.7 sq ftKITCHEN AND DINING397.8 sq ftMUDROOM91.4 sq ftGARAGE505.3 sq ftHALF BATH53.8 sq ftUP
3 bed two-story with a garage

The plans

2 story house plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

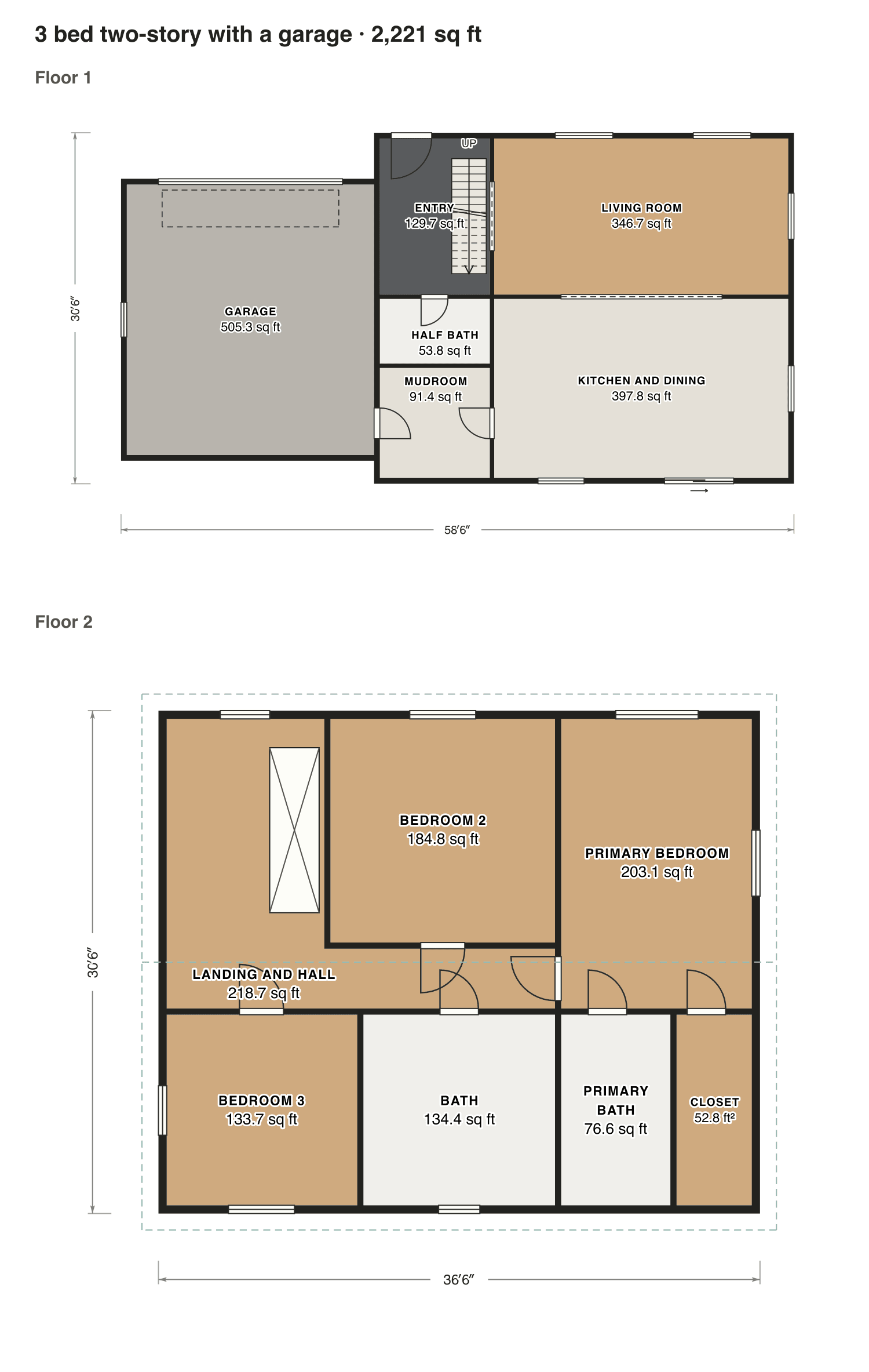

3 bed two-story with a garage

Living, kitchen and a garage on the ground floor, three bedrooms upstairs.

Finished area
2,221 sq ft
206 m² · ANSI Z765
Not counted
545 sq ft
listed apart, see below
Layout
3 bed, 2.5 bath
2 floors
  • 545 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

3 bed two-story with a garage floor plan: 2,221 sq ft (206 m²) finished, 3 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
59′ × 31′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed two-story with a garage

Room areas, 3 bed two-story with a garage
RoomFloorSq ftCounts as
EntryFloor 1130Finished, counts
Living roomFloor 1347Finished, counts
Half bathFloor 154Finished, counts
MudroomFloor 191Finished, counts
Kitchen and diningFloor 1398Finished, counts
GarageFloor 1505Not finished, not counted
Landing and hallFloor 2219Finished, counts
Bedroom 2Floor 2185Finished, counts
Primary bedroomFloor 2203Finished, counts
Primary bathFloor 277Finished, counts
ClosetFloor 253Finished, counts
Bedroom 3Floor 2134Finished, counts
BathFloor 2134Finished, counts
Finished area, ANSI Z7652,221outside the walls

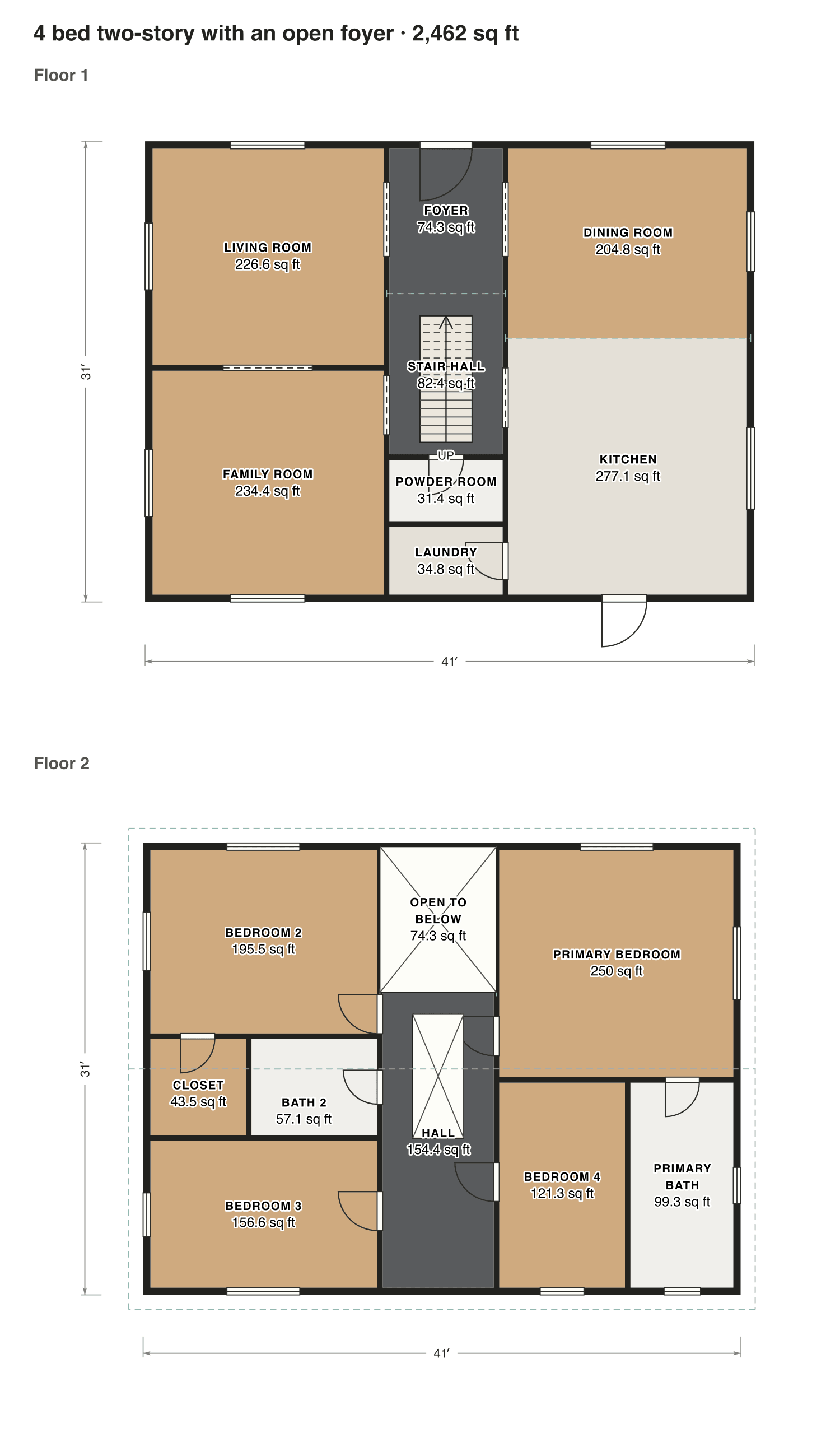

4 bed two-story with an open foyer

A foyer that is open to the upper floor, formal living and dining rooms in front and a family room and kitchen behind; four bedrooms upstairs.

Finished area
2,462 sq ft
229 m² · ANSI Z765
Not counted
80 sq ft
listed apart, see below
Layout
4 bed, 2.5 bath
2 floors
  • 80 sq ft open to below
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

4 bed two-story with an open foyer floor plan: 2,462 sq ft (229 m²) finished, 4 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
41′ × 31′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed two-story with an open foyer

Room areas, 4 bed two-story with an open foyer
RoomFloorSq ftCounts as
Living roomFloor 1227Finished, counts
FoyerFloor 174Finished, counts
Dining roomFloor 1205Finished, counts
Family roomFloor 1234Finished, counts
Stair hallFloor 182Finished, counts
Powder roomFloor 131Finished, counts
LaundryFloor 135Finished, counts
KitchenFloor 1277Finished, counts
Open to belowFloor 274Open to below, not counted
HallFloor 2154Finished, counts
Bedroom 2Floor 2195Finished, counts
ClosetFloor 243Finished, counts
Bath 2Floor 257Finished, counts
Bedroom 3Floor 2157Finished, counts
Primary bedroomFloor 2250Finished, counts
Bedroom 4Floor 2121Finished, counts
Primary bathFloor 299Finished, counts
Finished area, ANSI Z7652,462outside the walls

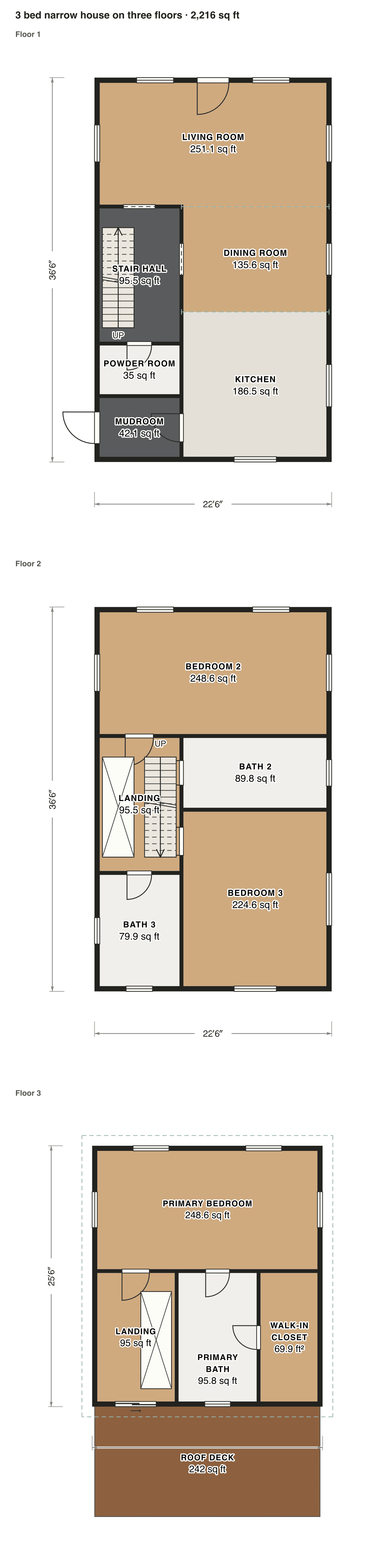

3 bed narrow house on three floors

Only 22 ft wide: living below, two bedrooms with baths on the middle floor, and the primary suite with a roof deck on top.

Finished area
2,216 sq ft
206 m² · ANSI Z765
Not counted
242 sq ft
listed apart, see below
Layout
3 bed, 3.5 bath
3 floors
  • 242 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

3 bed narrow house on three floors floor plan: 2,216 sq ft (206 m²) finished, 3 bed, 3.5 bath · 3 floors, drawn to scale with every room labeled.
23′ × 37′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed narrow house on three floors

Room areas, 3 bed narrow house on three floors
RoomFloorSq ftCounts as
Living roomFloor 1251Finished, counts
Stair hallFloor 195Finished, counts
Powder roomFloor 135Finished, counts
MudroomFloor 142Finished, counts
Dining roomFloor 1136Finished, counts
KitchenFloor 1186Finished, counts
Bedroom 2Floor 2249Finished, counts
LandingFloor 295Finished, counts
Bath 2Floor 290Finished, counts
Bedroom 3Floor 2225Finished, counts
Bath 3Floor 280Finished, counts
Primary bedroomFloor 3249Finished, counts
LandingFloor 395Finished, counts
Primary bathFloor 396Finished, counts
Walk-in closetFloor 370Finished, counts
Roof deckOutside242Outside, not counted
Finished area, ANSI Z7652,216outside the walls

What counts

What counts in the square footage

In the four-bedroom plan the foyer is open to the roof: 80 sq ft on the upper floor is open to below and doesn’t count. A stair opening does count (ANSI Z765 doesn’t deduct it).

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

2 story house plans: questions

About these two-story house plans. Can’t find your answer? Send us a message.

How tall is a 2 story house?

A floor in these plans is 9 ft from floor to ceiling plus about 1 ft of floor structure, so two floors are about 20 ft before the roof. You can see and change the heights in the editor.

Does the stair count in the square footage?

Yes, on the floor where it starts; the opening on the floor above isn’t deducted under ANSI Z765. A two-story open space is deducted on the upper floor.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
