One story house plans

A one-story house has every room on one floor: no stairs, and one roof over everything. Our plans run from 1,204 to 1,800 sq ft.

Plans
3
drawn to scale
Sizes
1,204 to 1,800 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

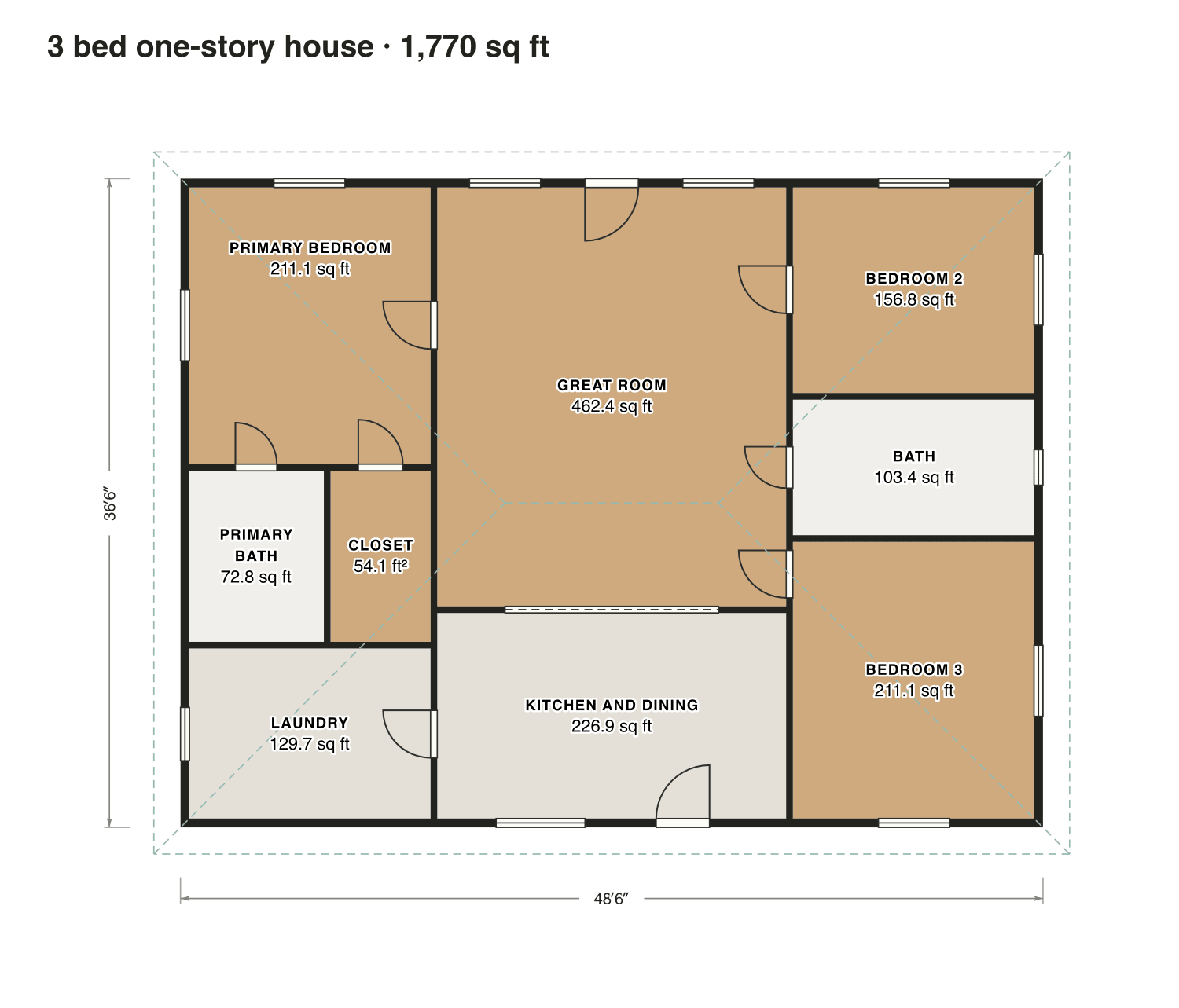

48′ 6″36′ 6″PRIMARY BEDROOM211.1 sq ftGREAT ROOM462.4 sq ftBEDROOM 2156.8 sq ftBATH103.4 sq ftBEDROOM 3211.1 sq ftLAUNDRY129.7 sq ftKITCHEN AND DINING226.9 sq ftPRIMARYBATH72.8 sq ftCLOSET54.1 ft²
3 bed one-story house

The plans

One story house plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

3 bed one-story house

Three bedrooms and two baths on one level, with the living room and kitchen in the middle.

Finished area
1,770 sq ft
164 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

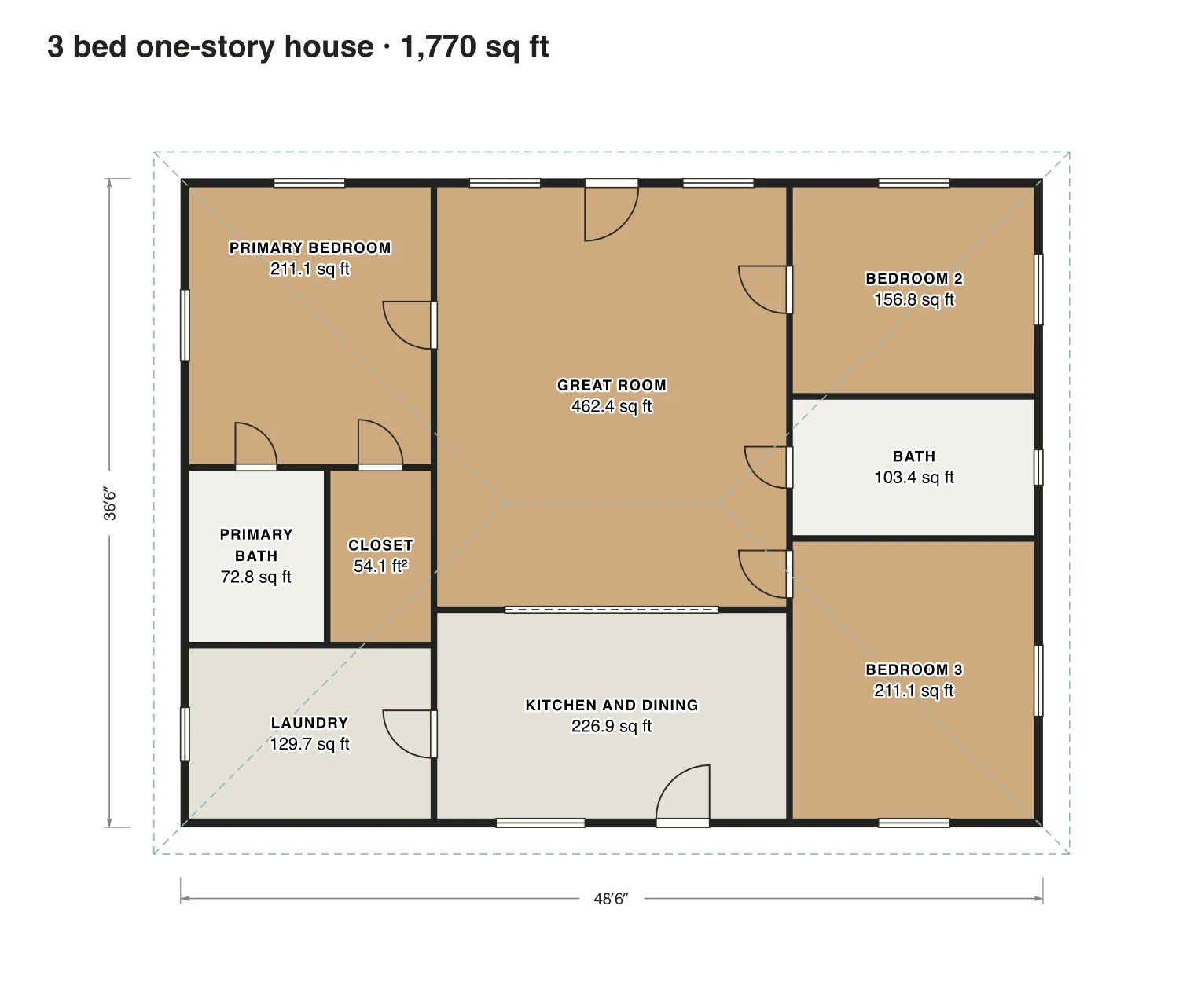

3 bed one-story house floor plan: 1,770 sq ft (164 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
49′ × 37′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed one-story house

Room areas, 3 bed one-story house
RoomFloorSq ftCounts as
Primary bedroomFloor 1211Finished, counts
Primary bathFloor 173Finished, counts
ClosetFloor 154Finished, counts
LaundryFloor 1130Finished, counts
Great roomFloor 1462Finished, counts
Kitchen and diningFloor 1227Finished, counts
Bedroom 2Floor 1157Finished, counts
BathFloor 1103Finished, counts
Bedroom 3Floor 1211Finished, counts
Finished area, ANSI Z7651,770outside the walls

3 bed one-story with split bedrooms

The two smaller bedrooms share a hall and a bath on one side; the primary suite is on the far side of the living room, for quiet.

Finished area
1,800 sq ft
167 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

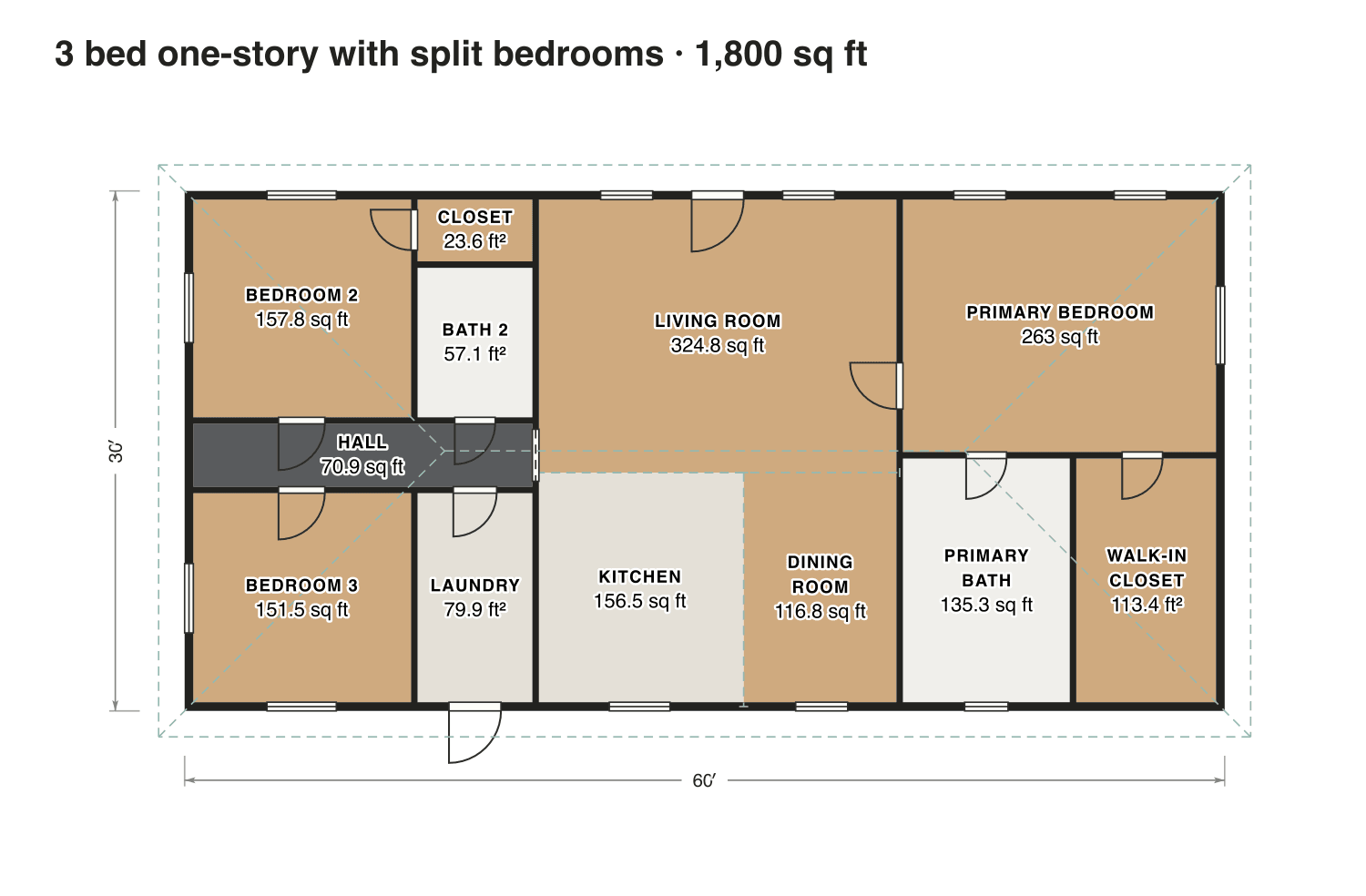

3 bed one-story with split bedrooms floor plan: 1,800 sq ft (167 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
60′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed one-story with split bedrooms

Room areas, 3 bed one-story with split bedrooms
RoomFloorSq ftCounts as
Bedroom 2Floor 1158Finished, counts
ClosetFloor 124Finished, counts
Bath 2Floor 157Finished, counts
HallFloor 171Finished, counts
Bedroom 3Floor 1152Finished, counts
LaundryFloor 180Finished, counts
Living roomFloor 1325Finished, counts
KitchenFloor 1157Finished, counts
Dining roomFloor 1117Finished, counts
Primary bedroomFloor 1263Finished, counts
Primary bathFloor 1135Finished, counts
Walk-in closetFloor 1113Finished, counts
Finished area, ANSI Z7651,800outside the walls

2 bed one-story with an entry

A small entry and hall lead to two bedrooms with their own baths; the living room and kitchen fill the other half.

Finished area
1,204 sq ft
112 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
2 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

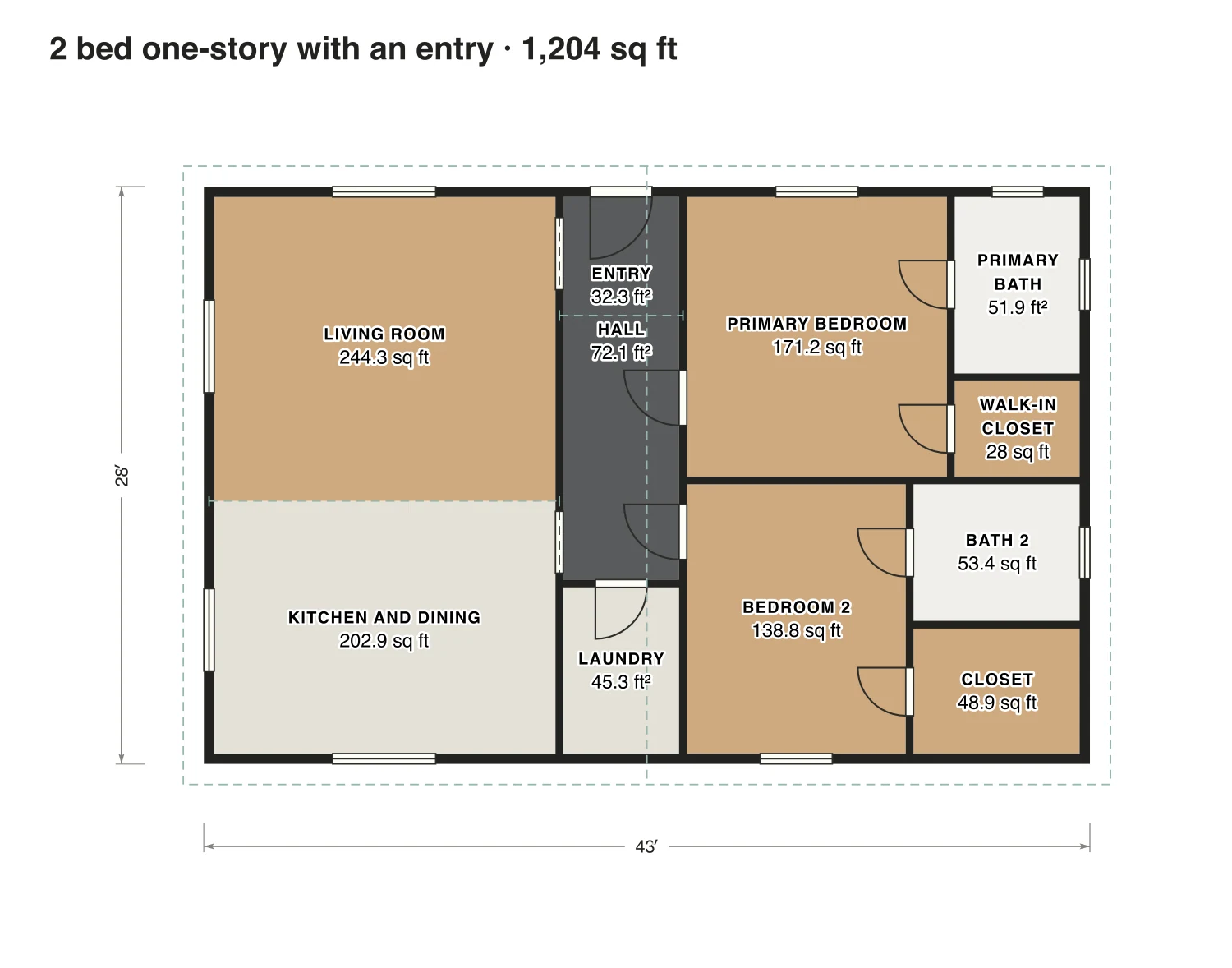

2 bed one-story with an entry floor plan: 1,204 sq ft (112 m²) finished, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
43′ × 28′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed one-story with an entry

Room areas, 2 bed one-story with an entry
RoomFloorSq ftCounts as
Living roomFloor 1244Finished, counts
Kitchen and diningFloor 1203Finished, counts
EntryFloor 132Finished, counts
HallFloor 172Finished, counts
LaundryFloor 145Finished, counts
Primary bedroomFloor 1171Finished, counts
Primary bathFloor 152Finished, counts
Walk-in closetFloor 128Finished, counts
Bedroom 2Floor 1139Finished, counts
Bath 2Floor 153Finished, counts
ClosetFloor 149Finished, counts
Finished area, ANSI Z7651,204outside the walls

What counts

What counts in the square footage

With one floor and no garage, the finished area is the house measured to the outside of its walls. Each room is measured inside its walls, so the rooms add up to less than the total.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

One story house plans: questions

About these one-story house plans. Can’t find your answer? Send us a message.

What is a house with only one story called?

A one-story or single-story house; a ranch and a bungalow are common one-story styles.

How many feet is 1 story?

In these plans one story is 9 ft from floor to ceiling, plus the floor and roof structure. You can change the height in the editor.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
