5 bedroom house plans

A 5-bedroom house suits a large family, or a household that wants a guest room and an office as well. Our two plans have 2,900 to 3,300 sq ft of finished space, one on two floors and one on a single level.

Plans
2
drawn to scale
Sizes
2,900 to 3,300 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

50′29′LIVING ROOM224.6 sq ftFOYER117 sq ftBATH 356.7 ft²BEDROOM 5217.8 sq ftFAMILY ROOM235.5 sq ftKITCHEN182.8 sq ftHALL30.6 ft²DINING ROOM138 sq ftMUDROOM127.4 sq ftUP

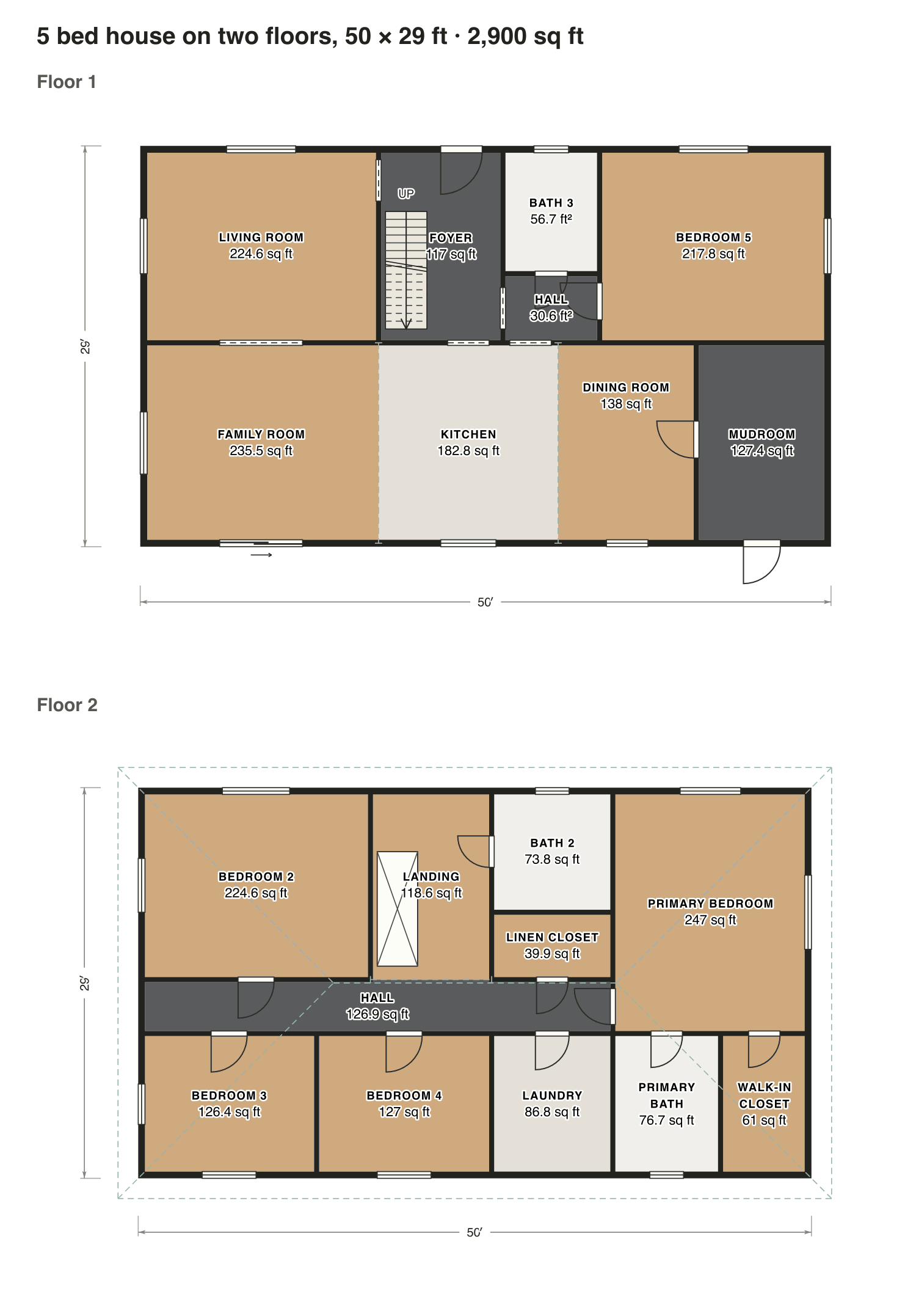

5 bed house on two floors, 50 × 29 ft

The plans

5 bedroom house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

5 bed house on two floors, 50 × 29 ft

Bedroom 5 and a full bath sit just off the foyer, handy for a parent or a guest. Upstairs the primary suite, three more bedrooms, a shared bath and the laundry close to the bedrooms.

Finished area
2,900 sq ft
269 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
5 bed, 3 bath
2 floors
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

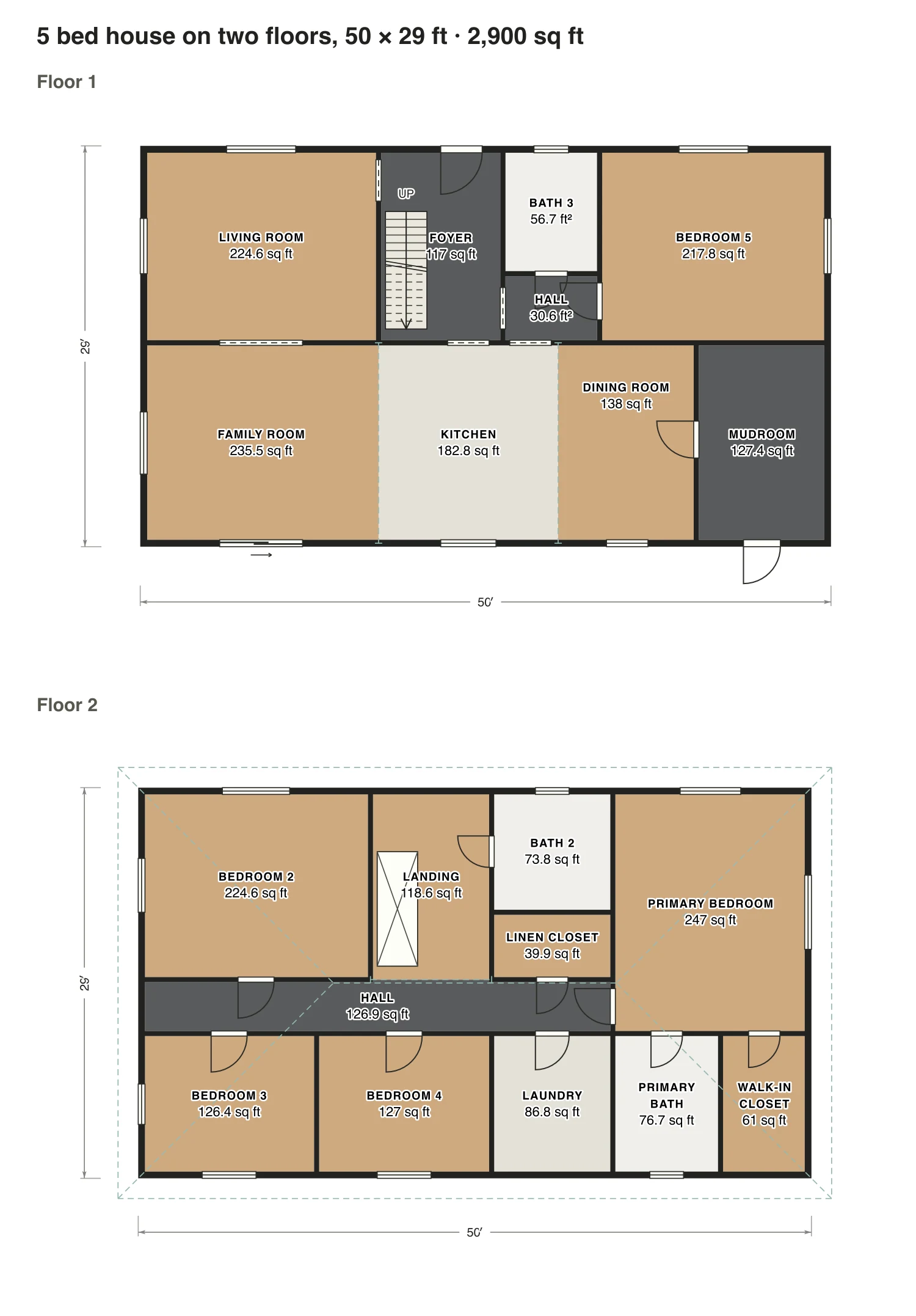

5 bed house on two floors, 50 × 29 ft floor plan: 2,900 sq ft (269 m²) finished, 5 bed, 3 bath · 2 floors, drawn to scale with every room labeled.
50′ × 29′ outsideExample floor plan, not a construction drawing

Rooms · 5 bed house on two floors, 50 × 29 ft

Room areas, 5 bed house on two floors, 50 × 29 ft
RoomFloorSq ftCounts as
Living roomFloor 1225Finished, counts
FoyerFloor 1117Finished, counts
Bath 3Floor 157Finished, counts
HallFloor 131Finished, counts
Bedroom 5Floor 1218Finished, counts
Family roomFloor 1236Finished, counts
KitchenFloor 1183Finished, counts
Dining roomFloor 1138Finished, counts
MudroomFloor 1127Finished, counts
Bedroom 2Floor 2225Finished, counts
LandingFloor 2119Finished, counts
Bath 2Floor 274Finished, counts
Linen closetFloor 240Finished, counts
Primary bedroomFloor 2247Finished, counts
HallFloor 2127Finished, counts
Bedroom 3Floor 2126Finished, counts
Bedroom 4Floor 2127Finished, counts
LaundryFloor 287Finished, counts
Primary bathFloor 277Finished, counts
Walk-in closetFloor 261Finished, counts
Finished area, ANSI Z7652,900outside the walls

5 bed house on one level with a three-car garage

Three bedrooms share a bath along a hall on the west side. A gallery behind the great room leads to a guest suite, a powder room and the primary suite at the back.

Finished area
3,300 sq ft
307 m² · ANSI Z765
Not counted
784 sq ft
listed apart, see below
Layout
5 bed, 3.5 bath
one floor
  • 784 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

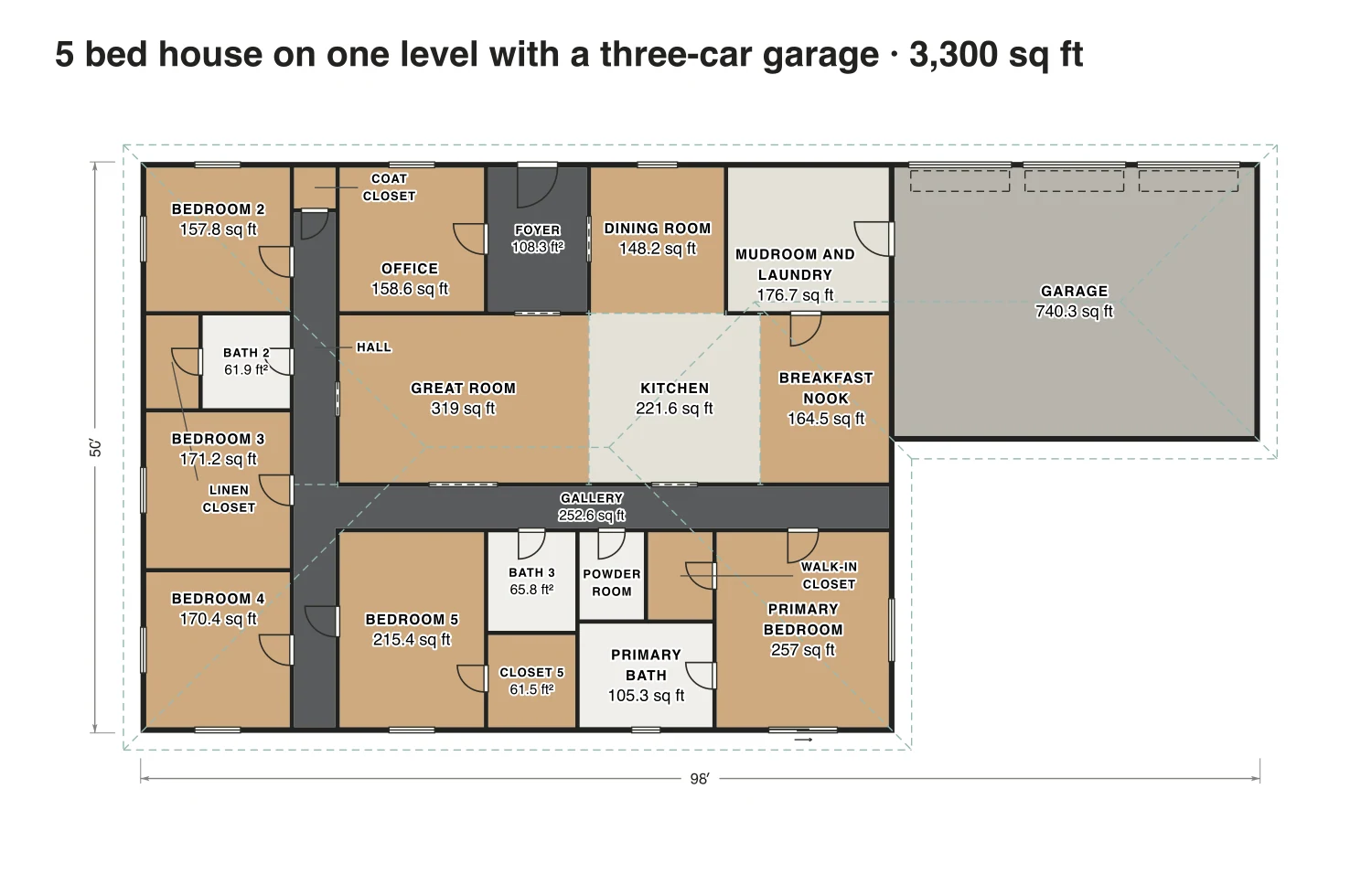

5 bed house on one level with a three-car garage floor plan: 3,300 sq ft (307 m²) finished, 5 bed, 3.5 bath · one floor, drawn to scale with every room labeled.
98′ × 50′ outsideExample floor plan, not a construction drawing

Rooms · 5 bed house on one level with a three-car garage

Room areas, 5 bed house on one level with a three-car garage
RoomFloorSq ftCounts as
Bedroom 2Floor 1158Finished, counts
Linen closetFloor 137Finished, counts
Bath 2Floor 162Finished, counts
Bedroom 3Floor 1171Finished, counts
Bedroom 4Floor 1170Finished, counts
Coat closetFloor 113Finished, counts
HallFloor 186Finished, counts
OfficeFloor 1159Finished, counts
FoyerFloor 1108Finished, counts
Dining roomFloor 1148Finished, counts
Mudroom and laundryFloor 1177Finished, counts
Great roomFloor 1319Finished, counts
KitchenFloor 1222Finished, counts
Breakfast nookFloor 1165Finished, counts
GalleryFloor 1253Finished, counts
Bedroom 5Floor 1215Finished, counts
Bath 3Floor 166Finished, counts
Closet 5Floor 161Finished, counts
Powder roomFloor 143Finished, counts
Walk-in closetFloor 143Finished, counts
Primary bathFloor 1105Finished, counts
Primary bedroomFloor 1257Finished, counts
GarageFloor 1740Not finished, not counted
Finished area, ANSI Z7653,300outside the walls

What counts

What counts in the square footage

On the single-level plan the three-car garage adds 784 sq ft under the same roof, yet it is unfinished, so ANSI Z765 reports it apart. In the two-story plan both floors are finished and each counts in full.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

5 bedroom house plans: questions

About these 5-bedroom house plans. Can’t find your answer? Send us a message.

How many square feet is a 5 bedroom house?

Most are between about 2,500 and 4,000 sq ft. The more of the house sits on one level, the larger the footprint; our plans have 2,900 and 3,300 sq ft.

How many bathrooms does a 5 bedroom house need?

Three is a common minimum: one for the primary suite, one shared by the other bedrooms and one for a guest room. A powder room near the living area keeps visitors out of the bedroom wing.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
