4 bedroom house plans

A 4-bedroom house gives a family a room each for up to four people, or three bedrooms plus a guest room or office. Our three plans run from 2,000 to 2,803 sq ft: one on a single floor, two on two floors with a garage beside them.

Plans
3
drawn to scale
Sizes
2,000 to 2,803 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

50′40′BEDROOM 2157.8 sq ftCOATCLOSETFOYER41.2 ft²LIVING ROOM223.3 sq ftPRIMARY BEDROOM190.7 sq ftBEDROOM 3158.6 sq ftHALLWALK-INCLOSET48.5 ft²PRIMARYBATH69.5 sq ftBATH 2KITCHEN189.7 sq ftLAUNDRY79.1 sq ftBEDROOM 4164.1 sq ftFAMILY ROOM193.7 sq ftDINING ROOM131.3 sq ftLINENCLOSET

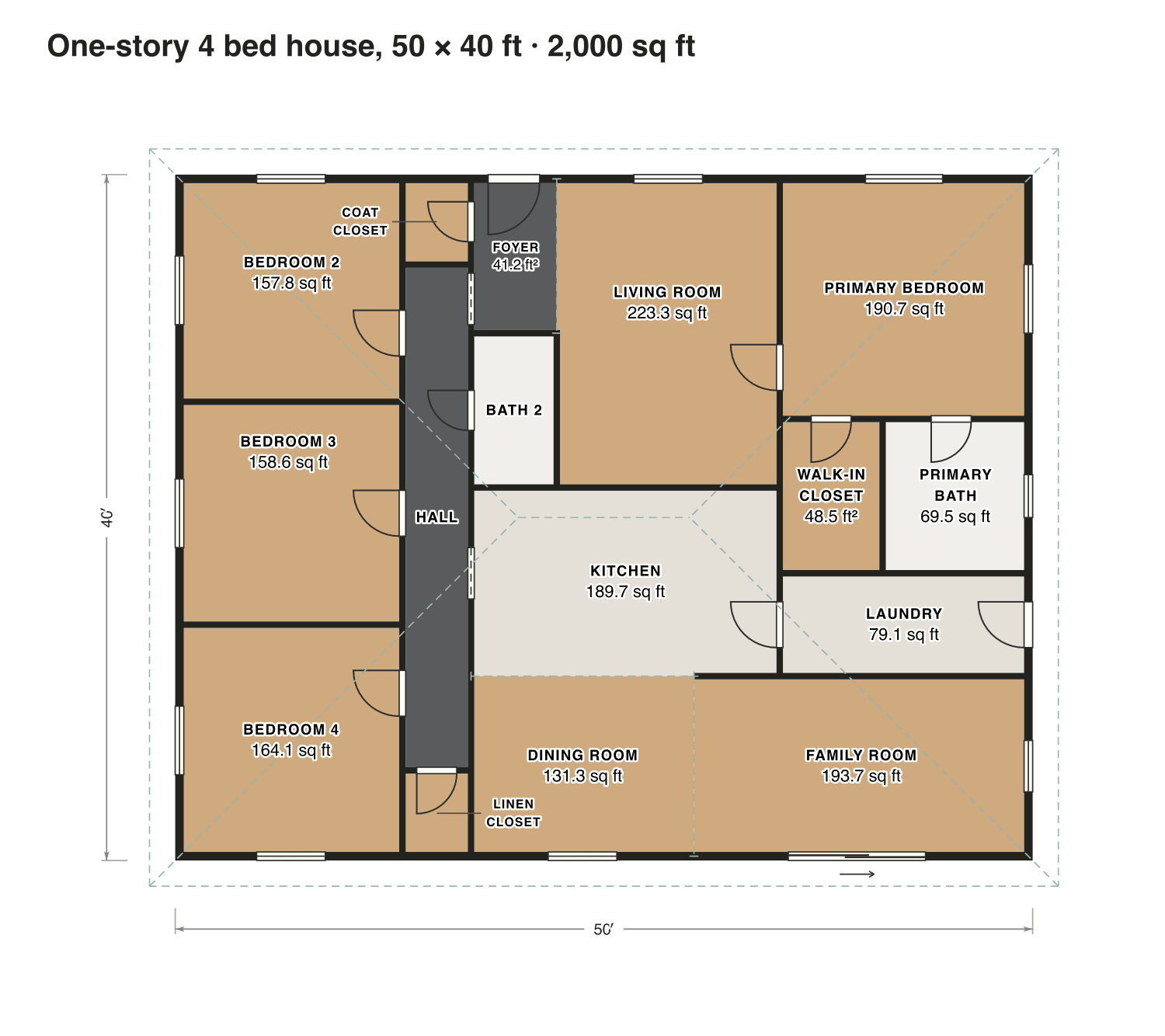

One-story 4 bed house, 50 × 40 ft

The plans

4 bedroom house plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

One-story 4 bed house, 50 × 40 ft

Three bedrooms line a hall on the left with a shared bath, while the primary suite takes the front right corner. Kitchen, dining room and family room run across the back.

Finished area
2,000 sq ft
186 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
4 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

One-story 4 bed house, 50 × 40 ft floor plan: 2,000 sq ft (186 m²) finished, 4 bed, 2 bath · one floor, drawn to scale with every room labeled.
50′ × 40′ outsideExample floor plan, not a construction drawing

Rooms · One-story 4 bed house, 50 × 40 ft

Room areas, One-story 4 bed house, 50 × 40 ft
RoomFloorSq ftCounts as
Bedroom 2Floor 1158Finished, counts
Bedroom 3Floor 1159Finished, counts
Bedroom 4Floor 1164Finished, counts
Coat closetFloor 117Finished, counts
HallFloor 1106Finished, counts
Linen closetFloor 117Finished, counts
FoyerFloor 141Finished, counts
Bath 2Floor 140Finished, counts
Living roomFloor 1223Finished, counts
KitchenFloor 1190Finished, counts
Dining roomFloor 1131Finished, counts
Family roomFloor 1194Finished, counts
Primary bedroomFloor 1191Finished, counts
Walk-in closetFloor 149Finished, counts
Primary bathFloor 170Finished, counts
LaundryFloor 179Finished, counts
Finished area, ANSI Z7652,000outside the walls

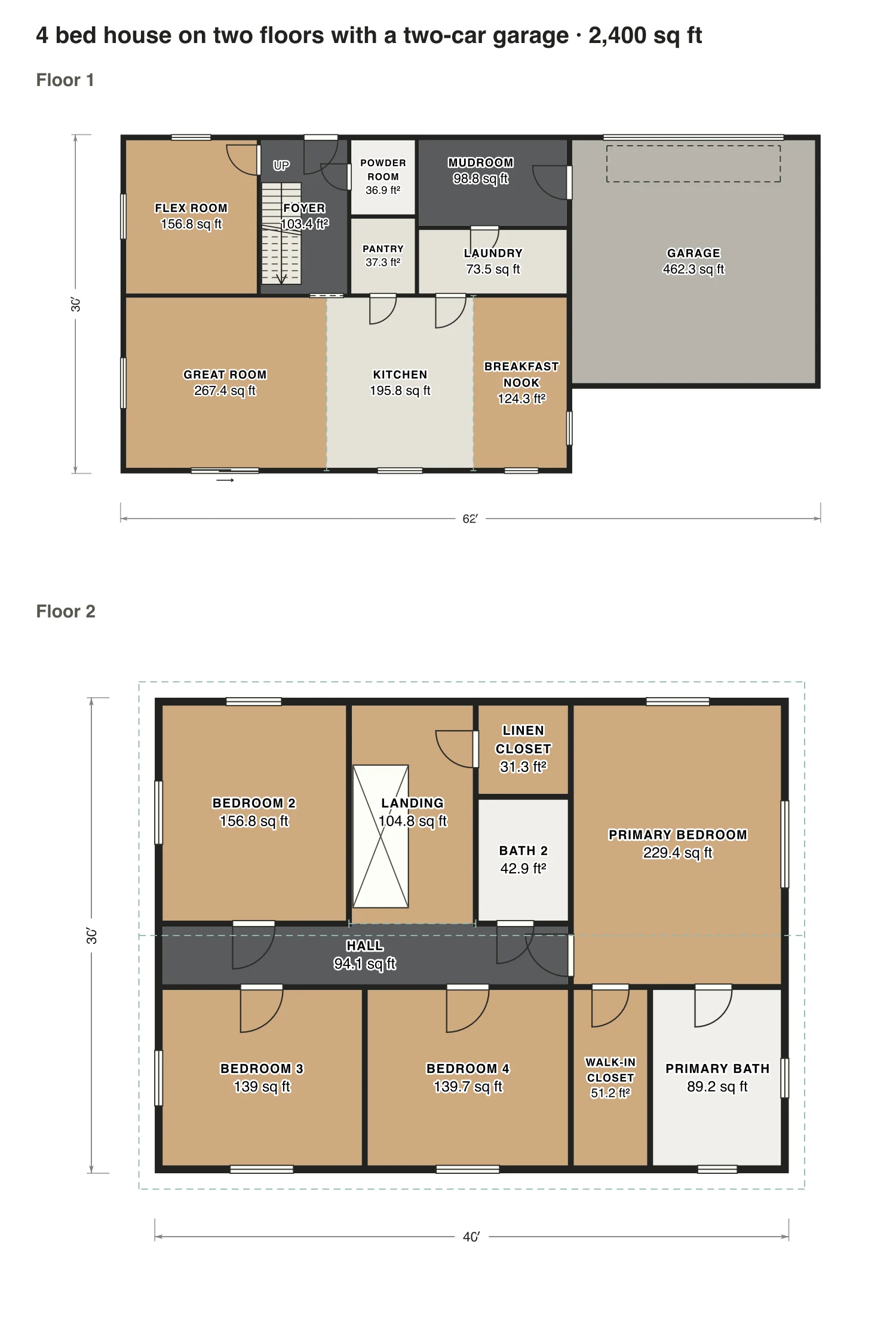

4 bed house on two floors with a two-car garage

Downstairs a flex room by the front door, a great room with kitchen and breakfast nook, and a mudroom with laundry from the garage. All four bedrooms are upstairs off one hall.

Finished area
2,400 sq ft
223 m² · ANSI Z765
Not counted
495 sq ft
listed apart, see below
Layout
4 bed, 2.5 bath
2 floors
  • 495 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

4 bed house on two floors with a two-car garage floor plan: 2,400 sq ft (223 m²) finished, 4 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
62′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed house on two floors with a two-car garage

Room areas, 4 bed house on two floors with a two-car garage
RoomFloorSq ftCounts as
Flex roomFloor 1157Finished, counts
FoyerFloor 1103Finished, counts
Powder roomFloor 137Finished, counts
PantryFloor 137Finished, counts
MudroomFloor 199Finished, counts
LaundryFloor 173Finished, counts
Great roomFloor 1267Finished, counts
KitchenFloor 1196Finished, counts
Breakfast nookFloor 1124Finished, counts
GarageFloor 1462Not finished, not counted
Bedroom 2Floor 2157Finished, counts
LandingFloor 2105Finished, counts
Linen closetFloor 231Finished, counts
Bath 2Floor 243Finished, counts
Primary bedroomFloor 2229Finished, counts
HallFloor 294Finished, counts
Bedroom 3Floor 2139Finished, counts
Bedroom 4Floor 2140Finished, counts
Walk-in closetFloor 251Finished, counts
Primary bathFloor 289Finished, counts
Finished area, ANSI Z7652,400outside the walls

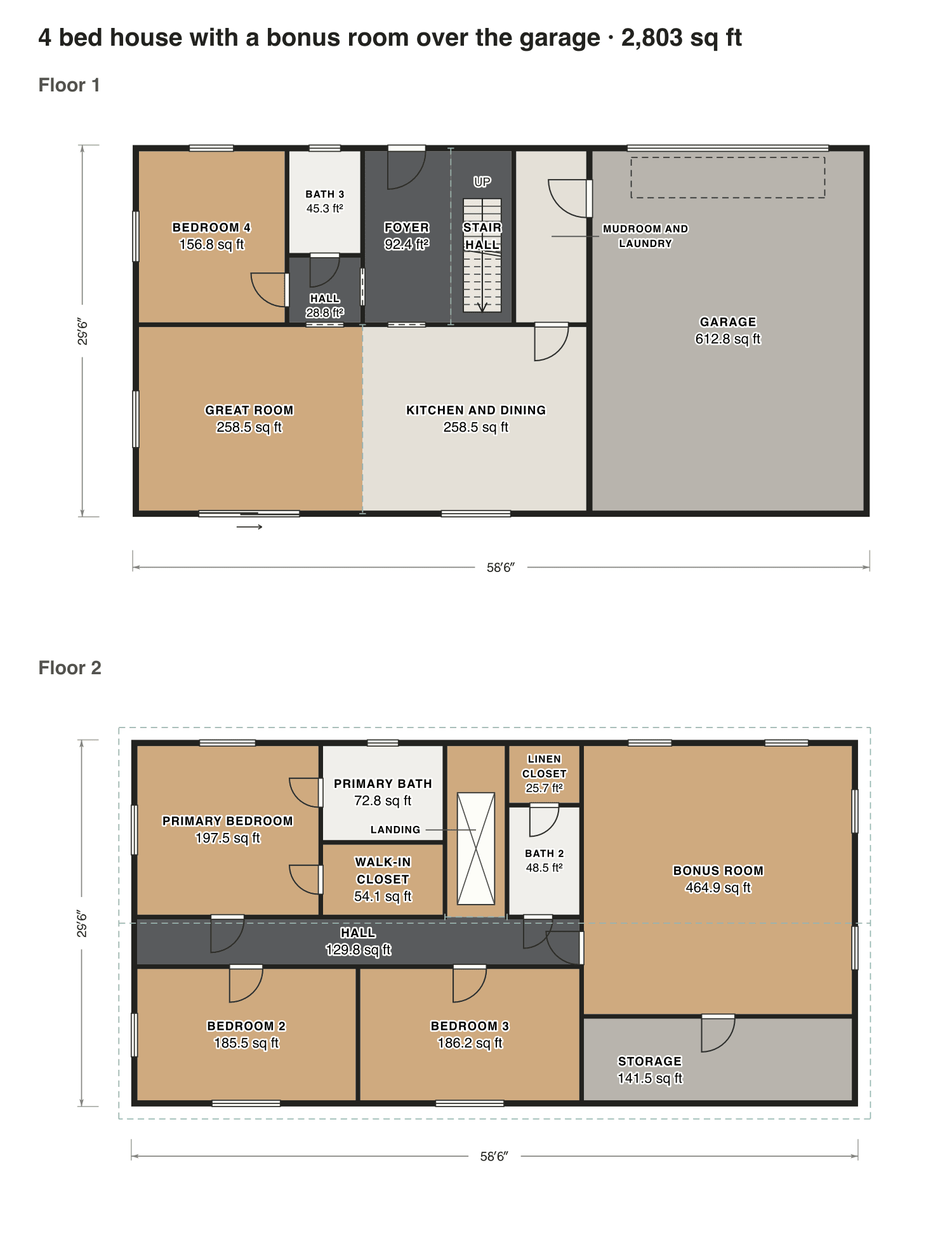

4 bed house with a bonus room over the garage

A guest bedroom with its own bath stays on the main floor. Upstairs the primary suite, two large bedrooms and a bonus room above the garage for play, films or a home gym.

Finished area
2,803 sq ft
260 m² · ANSI Z765
Not counted
649 sq ft
listed apart, see below
Layout
4 bed, 3 bath
2 floors
  • 649 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

4 bed house with a bonus room over the garage floor plan: 2,803 sq ft (260 m²) finished, 4 bed, 3 bath · 2 floors, drawn to scale with every room labeled.
59′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed house with a bonus room over the garage

Room areas, 4 bed house with a bonus room over the garage
RoomFloorSq ftCounts as
Bedroom 4Floor 1157Finished, counts
Bath 3Floor 145Finished, counts
HallFloor 129Finished, counts
FoyerFloor 192Finished, counts
Stair hallFloor 165Finished, counts
Mudroom and laundryFloor 175Finished, counts
Great roomFloor 1258Finished, counts
Kitchen and diningFloor 1258Finished, counts
GarageFloor 1613Not finished, not counted
Primary bedroomFloor 2197Finished, counts
Primary bathFloor 273Finished, counts
Walk-in closetFloor 254Finished, counts
LandingFloor 264Finished, counts
Linen closetFloor 226Finished, counts
Bath 2Floor 249Finished, counts
HallFloor 2130Finished, counts
Bedroom 2Floor 2185Finished, counts
Bedroom 3Floor 2186Finished, counts
Bonus roomFloor 2465Finished, counts
StorageFloor 2141Finished, counts
Finished area, ANSI Z7652,803outside the walls

What counts

What counts in the square footage

The garages stay out of the total: 495 and 649 sq ft. The bonus room above the second garage is finished like the bedrooms next to it, so it counts as part of the upper floor.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

4 bedroom house plans: questions

About these 4-bedroom house plans. Can’t find your answer? Send us a message.

What is a good size for a 4 bedroom house?

Many land between about 2,000 and 3,000 sq ft. That leaves room for bedrooms of 11 × 12 ft or more plus a primary suite; our plans span 2,000 to 2,803 sq ft.

Is a 4 bedroom house better on one floor or two?

One floor means no stairs and suits older owners, but it needs a wider lot. Two floors fit a smaller lot and keep the bedrooms quiet upstairs, away from the living area.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
