Bungalow house plans

A bungalow is a small one story house, often with a low roof and a porch or bay at the front, built for a narrow lot. Our two plans have 1,296 to 1,411 sq ft, with the living room at the front and the bedrooms along one side.

Plans
2
drawn to scale
Sizes
1,296 to 1,411 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

30′ 6″42′ 6″LIVING ROOM242.2 sq ftBEDROOM 1183.9 sq ftBATH65.3 sq ftCLOSET65.3 sq ftBEDROOM 2156.8 sq ftKITCHEN211.1 sq ftDINING ROOM180.9 sq ftHALL72.3 ft²
2 bed bungalow

The plans

Bungalow house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

2 bed bungalow

The first plan on this page: living, dining and kitchen in a row down one side, two bedrooms and a bath with a hall closet down the other.

Finished area
1,296 sq ft
120 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
2 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

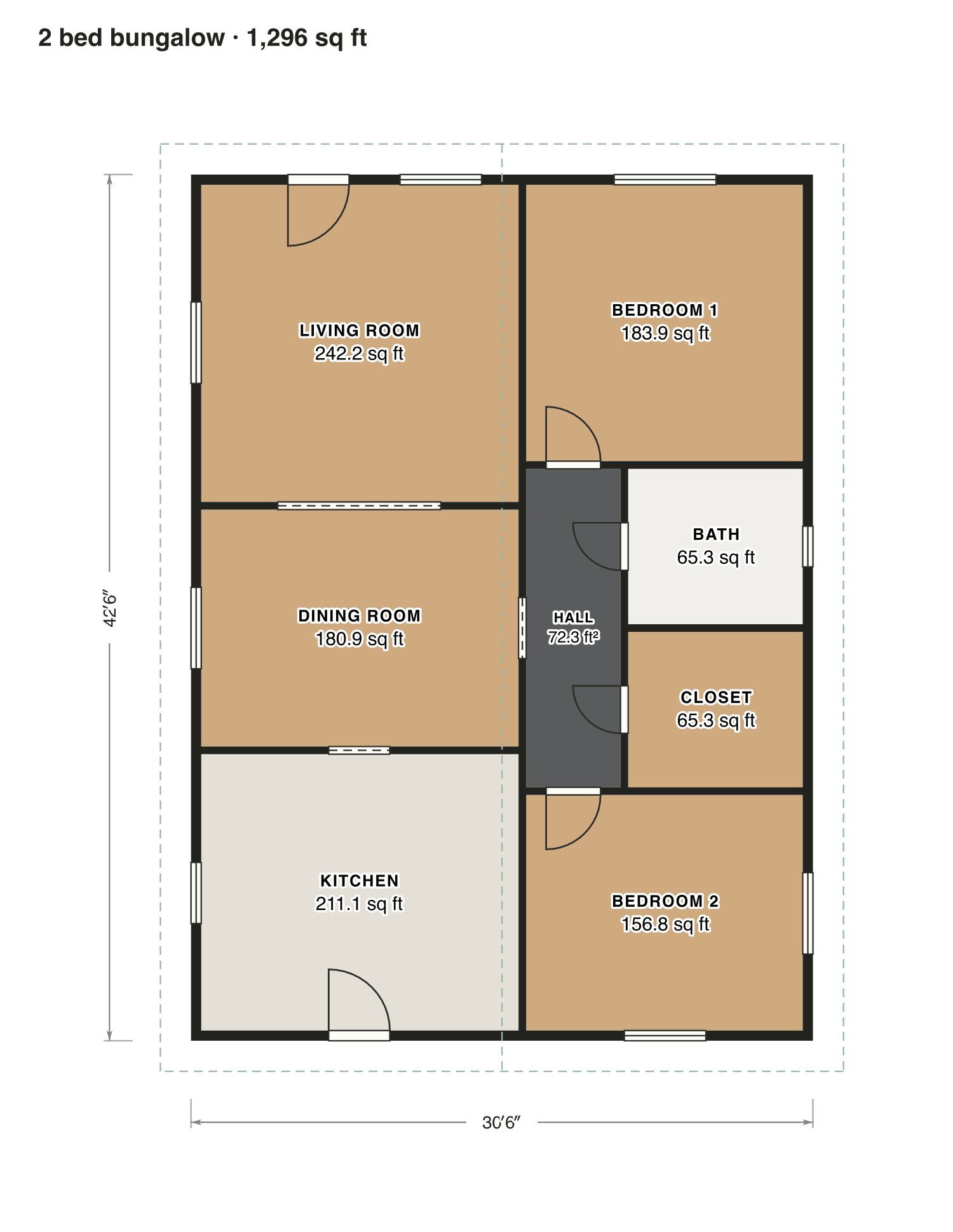

2 bed bungalow floor plan: 1,296 sq ft (120 m²) finished, 2 bed, 1 bath · one floor, drawn to scale with every room labeled.
31′ × 43′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed bungalow

Room areas, 2 bed bungalow
RoomFloorSq ftCounts as
Living roomFloor 1242Finished, counts
Dining roomFloor 1181Finished, counts
KitchenFloor 1211Finished, counts
Bedroom 1Floor 1184Finished, counts
HallFloor 172Finished, counts
BathFloor 165Finished, counts
ClosetFloor 165Finished, counts
Bedroom 2Floor 1157Finished, counts
Finished area, ANSI Z7651,296outside the walls

3 bed bungalow for a narrow lot

Only 32 ft wide and deep. A living room with a bay at the street, dining and kitchen behind it, and three bedrooms on a side hall; the primary bath sits next to the laundry at the back.

Finished area
1,411 sq ft
131 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

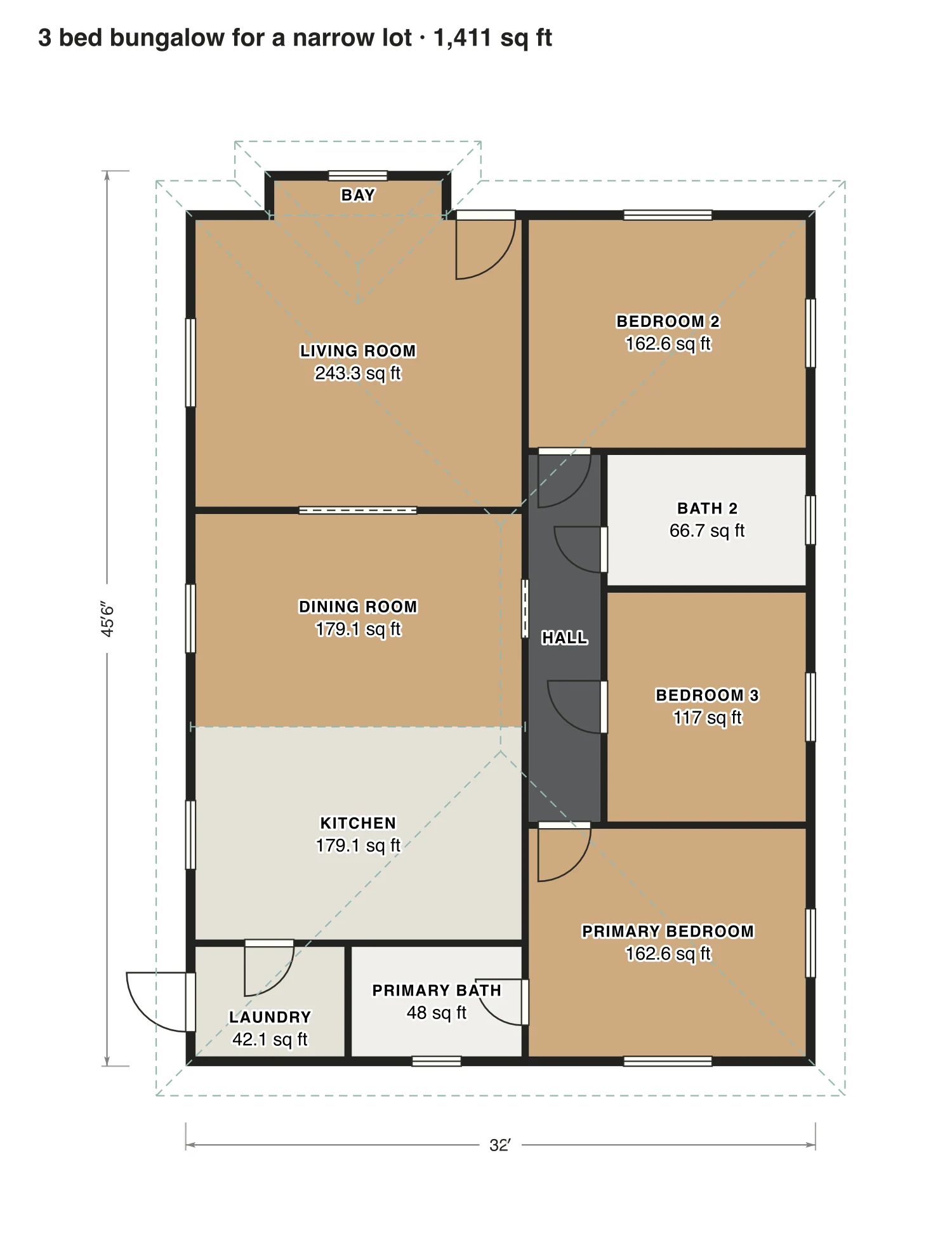

3 bed bungalow for a narrow lot floor plan: 1,411 sq ft (131 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
32′ × 46′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed bungalow for a narrow lot

Room areas, 3 bed bungalow for a narrow lot
RoomFloorSq ftCounts as
Living roomFloor 1243Finished, counts
BayFloor 115Finished, counts
Dining roomFloor 1179Finished, counts
KitchenFloor 1179Finished, counts
LaundryFloor 142Finished, counts
Primary bathFloor 148Finished, counts
Bedroom 2Floor 1163Finished, counts
HallFloor 168Finished, counts
Bath 2Floor 167Finished, counts
Bedroom 3Floor 1117Finished, counts
Primary bedroomFloor 1163Finished, counts
Finished area, ANSI Z7651,411outside the walls

What counts

What counts in the square footage

Everything in a bungalow is on one floor, so the total is simply that floor measured outside the walls. The bay in front of the living room in the three bedroom plan is part of the room and counts toward its 1,411 sq ft.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Bungalow house plans: questions

About these bungalow plans. Can’t find your answer? Send us a message.

What makes a house a bungalow?

One story, or one and a half with rooms under the roof, a compact footprint, a low roof with wide eaves and an entry straight into the living room. Most have a front porch or a bay.

What are popular bungalow layouts?

Two are common: the long plan with public rooms down one side and bedrooms down the other, and the square plan with the living room in front and bedrooms around a short hall.

What are some good plans for a 1200 square foot bungalow house?

At that size, aim for two bedrooms and one bath, or three small bedrooms with a second bath. Our 1200 sq ft page has a plan at exactly that size to start from.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
