30x40 house plans

A 30x40 house is 30 by 40 ft measured to the outside of the walls, 1,200 sq ft on one floor. Our two plans use that rectangle in two ways: two bedrooms and an office, or three bedrooms.

Plans
2
drawn to scale
Sizes
1,200 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

40′30′OFFICE121.4 sq ftGREAT ROOM230.3 sq ftPRIMARY BEDROOM156.8 sq ftBATH 250.1 sq ftHALLPRIMARYBATH55.9 ft²WALK-INCLOSET46.2 ft²BEDROOM 2139.5 sq ftKITCHEN193.8 sq ftMUDROOM64.3 sq ftFRONT PORCH237 sq ft
2 bed 30x40 house with an office

The plans

30x40 house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

2 bed 30x40 house with an office

A split plan: the great room and kitchen in the middle, the primary suite at one end, and an office, a second bedroom and a bath at the other. A mudroom with laundry sits by the back door.

Finished area
1,200 sq ft
111 m² · ANSI Z765
Not counted
237 sq ft
listed apart, see below
Layout
2 bed, 2 bath
one floor
  • 237 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

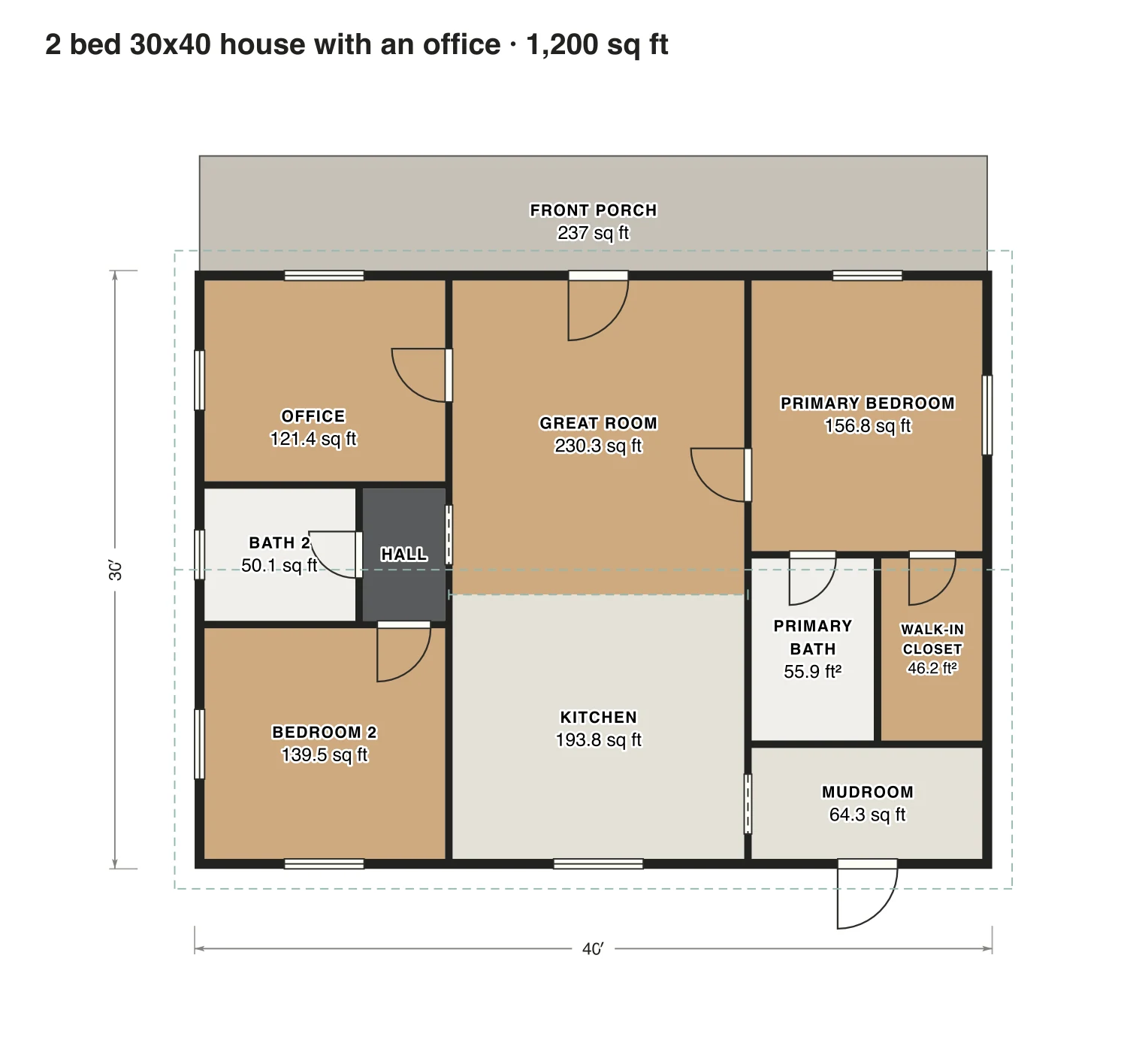

2 bed 30x40 house with an office floor plan: 1,200 sq ft (111 m²) finished, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
40′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed 30x40 house with an office

Room areas, 2 bed 30x40 house with an office
RoomFloorSq ftCounts as
OfficeFloor 1121Finished, counts
Bath 2Floor 150Finished, counts
HallFloor 127Finished, counts
Bedroom 2Floor 1139Finished, counts
Great roomFloor 1230Finished, counts
KitchenFloor 1194Finished, counts
Primary bedroomFloor 1157Finished, counts
Primary bathFloor 156Finished, counts
Walk-in closetFloor 146Finished, counts
MudroomFloor 164Finished, counts
Front porchOutside237Outside, not counted
Finished area, ANSI Z7651,200outside the walls

3 bed 30x40 house

All three bedrooms on one side along a hall, with a shared bath and a laundry room between them and the kitchen. Living room, kitchen and dining fill the other side and open to a deck.

Finished area
1,200 sq ft
111 m² · ANSI Z765
Not counted
165 sq ft
listed apart, see below
Layout
3 bed, 2 bath
one floor
  • 165 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

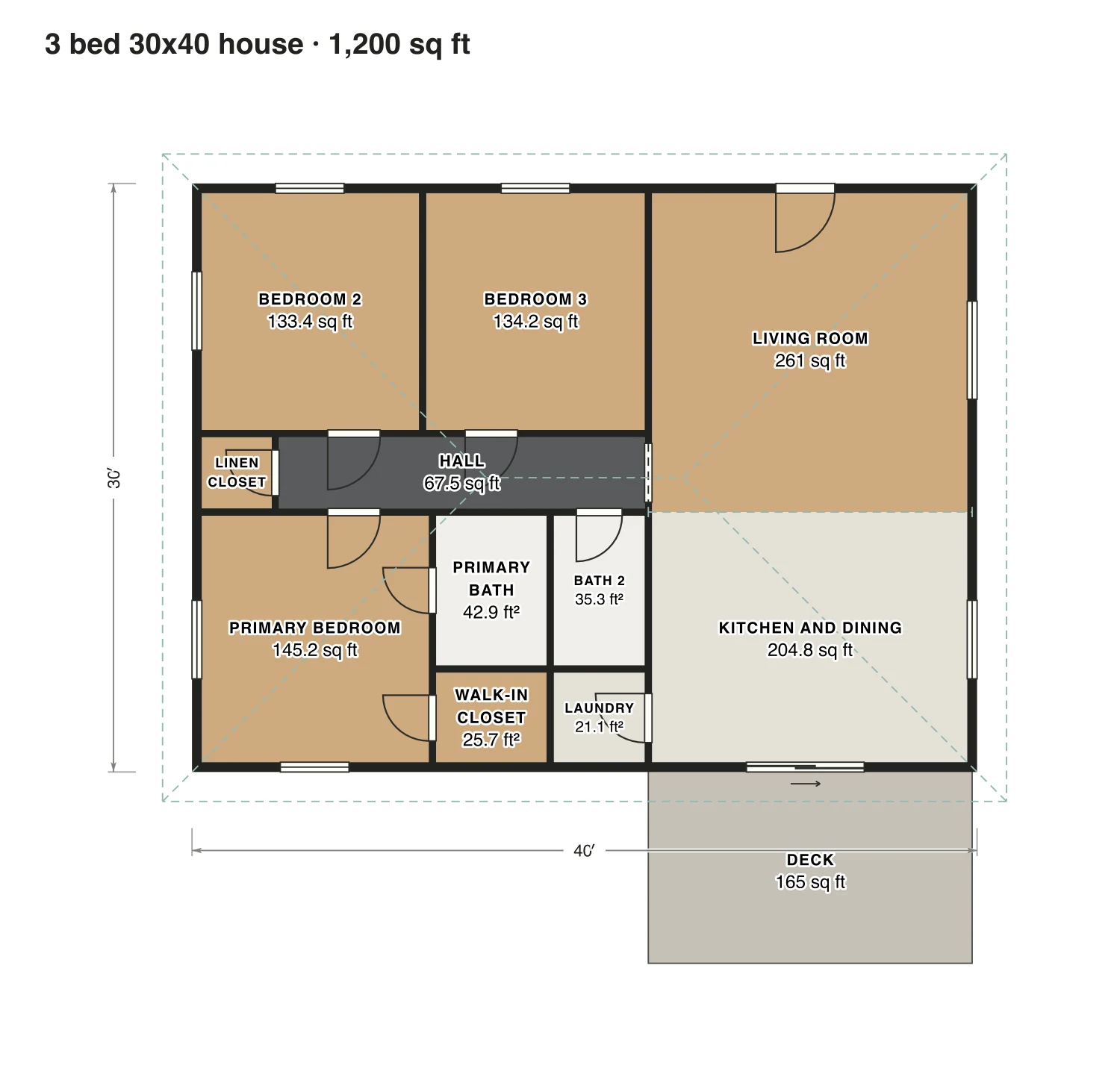

3 bed 30x40 house floor plan: 1,200 sq ft (111 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
40′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed 30x40 house

Room areas, 3 bed 30x40 house
RoomFloorSq ftCounts as
Bedroom 2Floor 1133Finished, counts
Bedroom 3Floor 1134Finished, counts
Linen closetFloor 113Finished, counts
HallFloor 168Finished, counts
Primary bedroomFloor 1145Finished, counts
Primary bathFloor 143Finished, counts
Walk-in closetFloor 126Finished, counts
Bath 2Floor 135Finished, counts
LaundryFloor 121Finished, counts
Living roomFloor 1261Finished, counts
Kitchen and diningFloor 1205Finished, counts
DeckOutside165Outside, not counted
Finished area, ANSI Z7651,200outside the walls

What counts

What counts in the square footage

Same outside size, same total: both plans measure 1,200 sq ft. What changes is the split of the floor, with more bedroom and hall in the three bedroom plan and more kitchen and office in the other. The porch and the deck are outside.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

30x40 house plans: questions

About these 30x40 house plans. Can’t find your answer? Send us a message.

How many bedrooms can fit in a 30x40 house?

Three fit on one floor with two baths, as the second plan shows. Four is possible if the rooms get small or you add a second floor.

Is 2000 sq ft big for a house?

It is a comfortable size for three or four bedrooms. A 30x40 house has 1,200 sq ft per floor, so adding a second floor would take it past 2,000.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
