Ranch house plans

A ranch house is a one-story home, usually long and low, often with an attached garage. The garage isn’t finished living space, so it doesn’t count toward the square footage; our four plans have 1,200 to 2,105 sq ft.

Plans
4
drawn to scale
Sizes
1,200 to 2,105 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

78′ 6″30′ 6″LIVING ROOM314 sq ftKITCHEN198.4 sq ftPRIMARY BEDROOM382.7 sq ftGARAGE505.3 sq ftCLOSET91.4 ft²BEDROOM 2110.6 sq ftBATH72.9 ft²BEDROOM 3149.4 sq ftPRIMARYBATH92 sq ftHALL164.5 sq ft
3 bed ranch with a garage

The plans

Ranch house plans, 4 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

3 bed ranch with a garage

A long, low ranch with the garage at one end and the primary bedroom on the other side of the living room.

Finished area
1,717 sq ft
160 m² · ANSI Z765
Not counted
545 sq ft
listed apart, see below
Layout
3 bed, 2 bath
one floor
  • 545 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

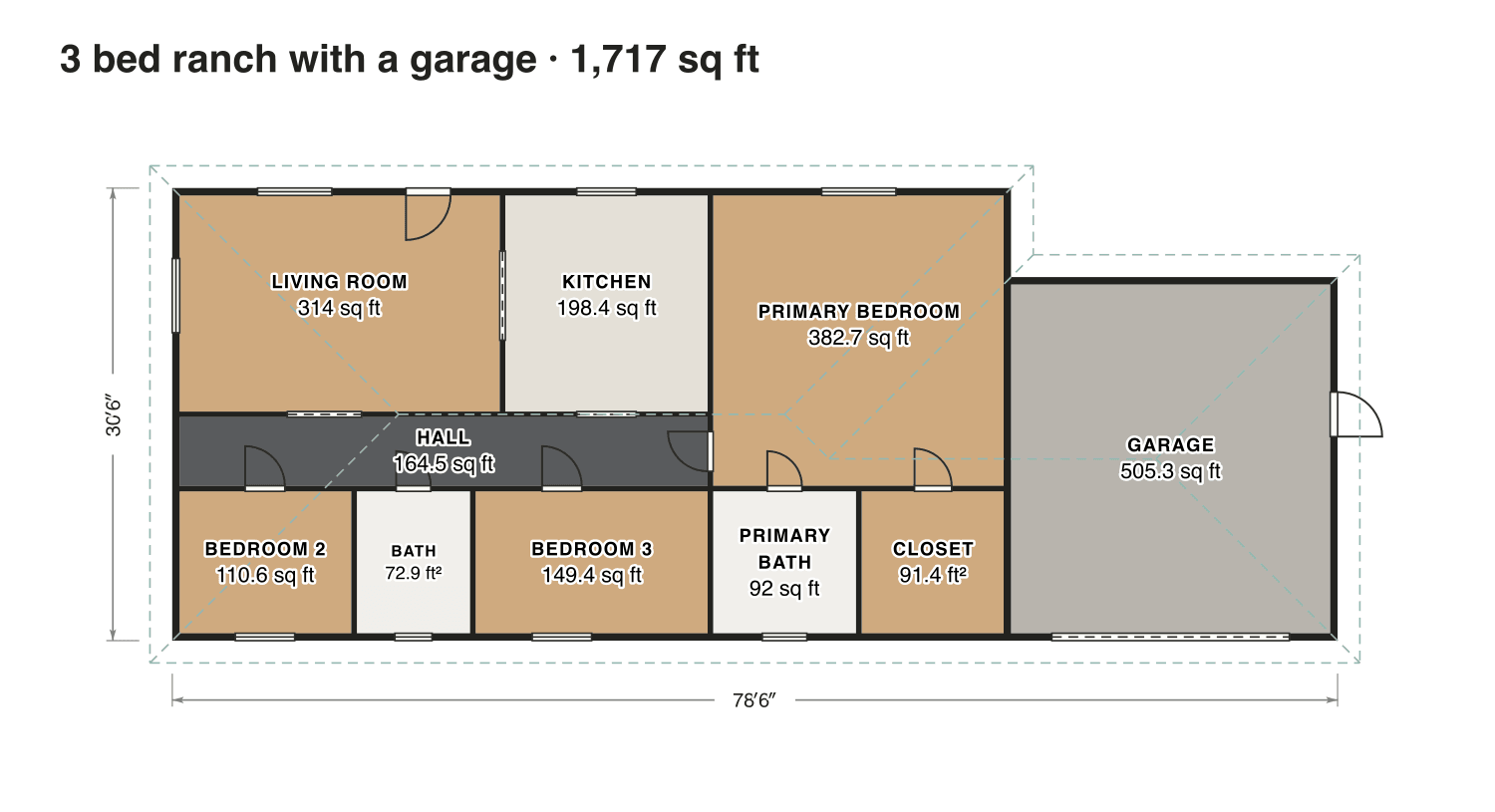

3 bed ranch with a garage floor plan: 1,717 sq ft (160 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
79′ × 31′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed ranch with a garage

Room areas, 3 bed ranch with a garage
RoomFloorSq ftCounts as
Living roomFloor 1314Finished, counts
KitchenFloor 1198Finished, counts
HallFloor 1164Finished, counts
Bedroom 2Floor 1111Finished, counts
BathFloor 173Finished, counts
Bedroom 3Floor 1149Finished, counts
Primary bedroomFloor 1383Finished, counts
Primary bathFloor 192Finished, counts
ClosetFloor 191Finished, counts
GarageFloor 1505Not finished, not counted
Finished area, ANSI Z7651,717outside the walls

4 bed L-shaped ranch with a garage

Three bedrooms along a hall in one wing, the primary suite and an office in the other, and a two-car garage forming the L.

Finished area
2,105 sq ft
196 m² · ANSI Z765
Not counted
540 sq ft
listed apart, see below
Layout
4 bed, 2 bath
one floor
  • 540 sq ft garage, shop or storage
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

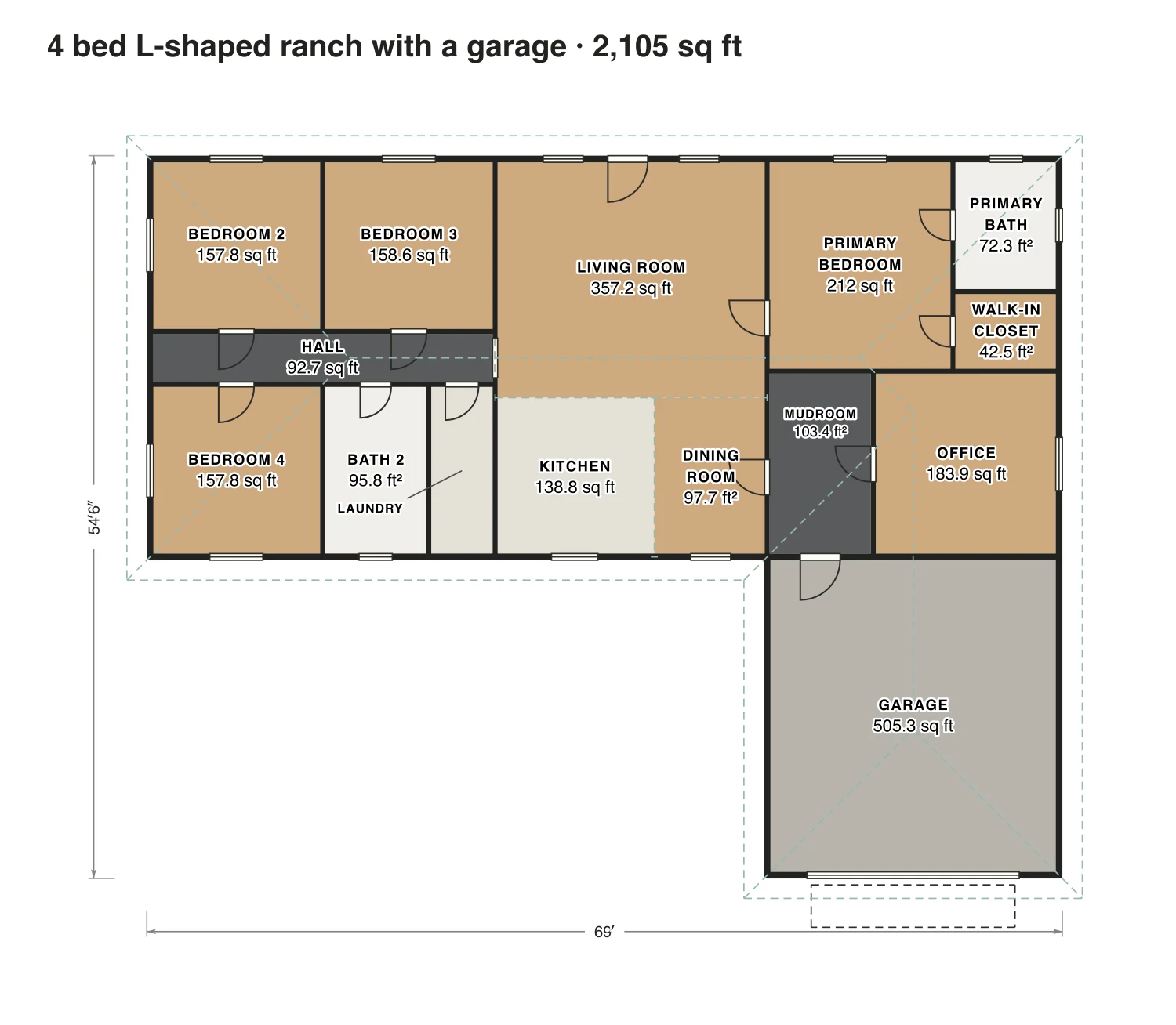

4 bed L-shaped ranch with a garage floor plan: 2,105 sq ft (196 m²) finished, 4 bed, 2 bath · one floor, drawn to scale with every room labeled.
69′ × 55′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed L-shaped ranch with a garage

Room areas, 4 bed L-shaped ranch with a garage
RoomFloorSq ftCounts as
Bedroom 2Floor 1158Finished, counts
Bedroom 3Floor 1159Finished, counts
HallFloor 193Finished, counts
Bedroom 4Floor 1158Finished, counts
Bath 2Floor 196Finished, counts
LaundryFloor 158Finished, counts
Living roomFloor 1357Finished, counts
KitchenFloor 1139Finished, counts
Dining roomFloor 198Finished, counts
Primary bedroomFloor 1212Finished, counts
Primary bathFloor 172Finished, counts
Walk-in closetFloor 143Finished, counts
MudroomFloor 1103Finished, counts
OfficeFloor 1184Finished, counts
GarageFloor 1505Not finished, not counted
Finished area, ANSI Z7652,105outside the walls

3 bed ranch with an open plan

The middle of the house is one room for living, cooking and dining, with two bedrooms on one side and the primary suite on the other.

Finished area
1,607 sq ft
149 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

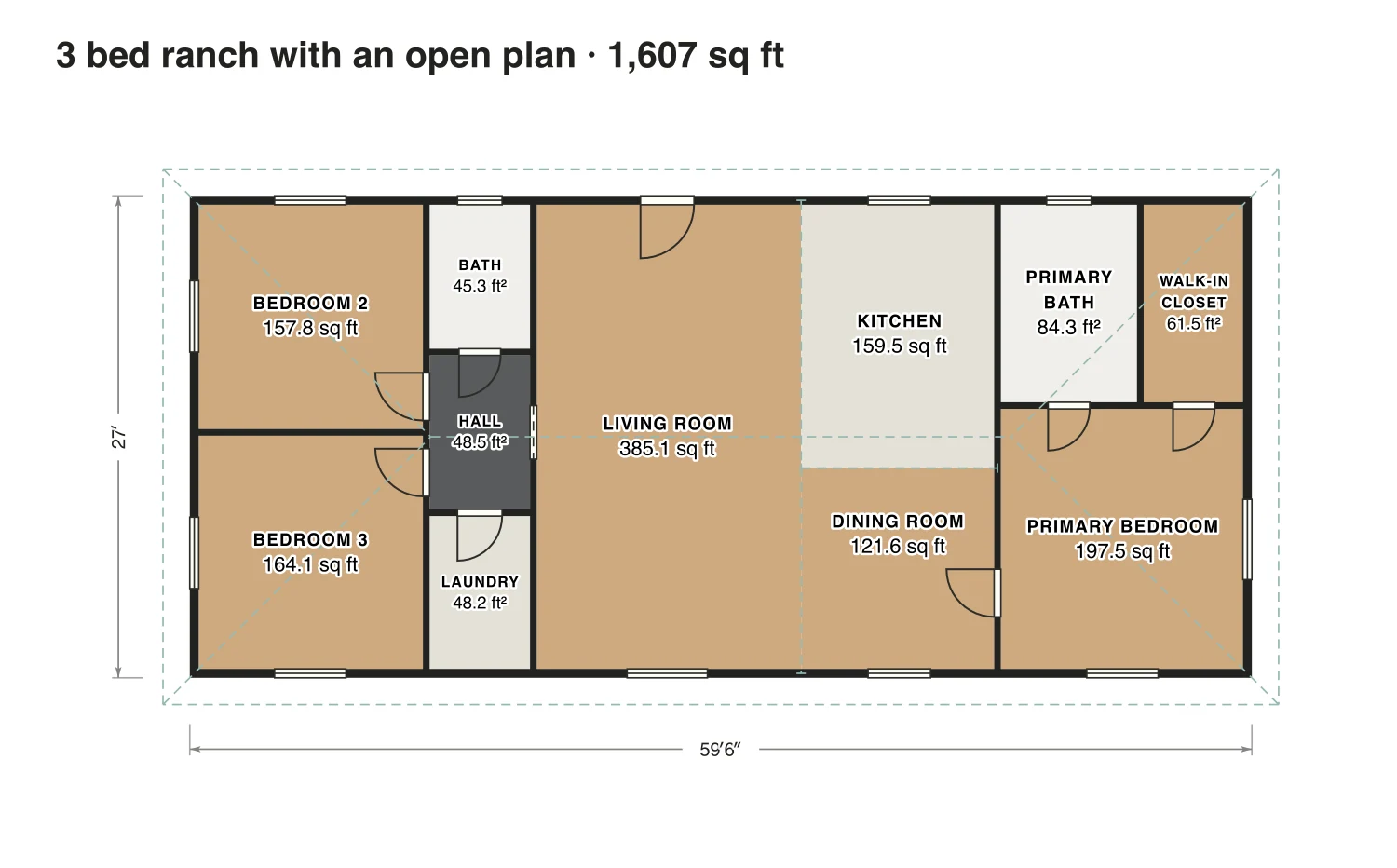

3 bed ranch with an open plan floor plan: 1,607 sq ft (149 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
60′ × 27′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed ranch with an open plan

Room areas, 3 bed ranch with an open plan
RoomFloorSq ftCounts as
Bedroom 2Floor 1158Finished, counts
Bedroom 3Floor 1164Finished, counts
BathFloor 145Finished, counts
HallFloor 149Finished, counts
LaundryFloor 148Finished, counts
Living roomFloor 1385Finished, counts
KitchenFloor 1159Finished, counts
Dining roomFloor 1122Finished, counts
Primary bathFloor 184Finished, counts
Walk-in closetFloor 162Finished, counts
Primary bedroomFloor 1197Finished, counts
Finished area, ANSI Z7651,607outside the walls

Small 2 bed ranch

A 48 × 25 ft ranch: the living room and kitchen at the front, both bedrooms with their own bath, and a pantry and laundry in between.

Finished area
1,200 sq ft
111 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
2 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

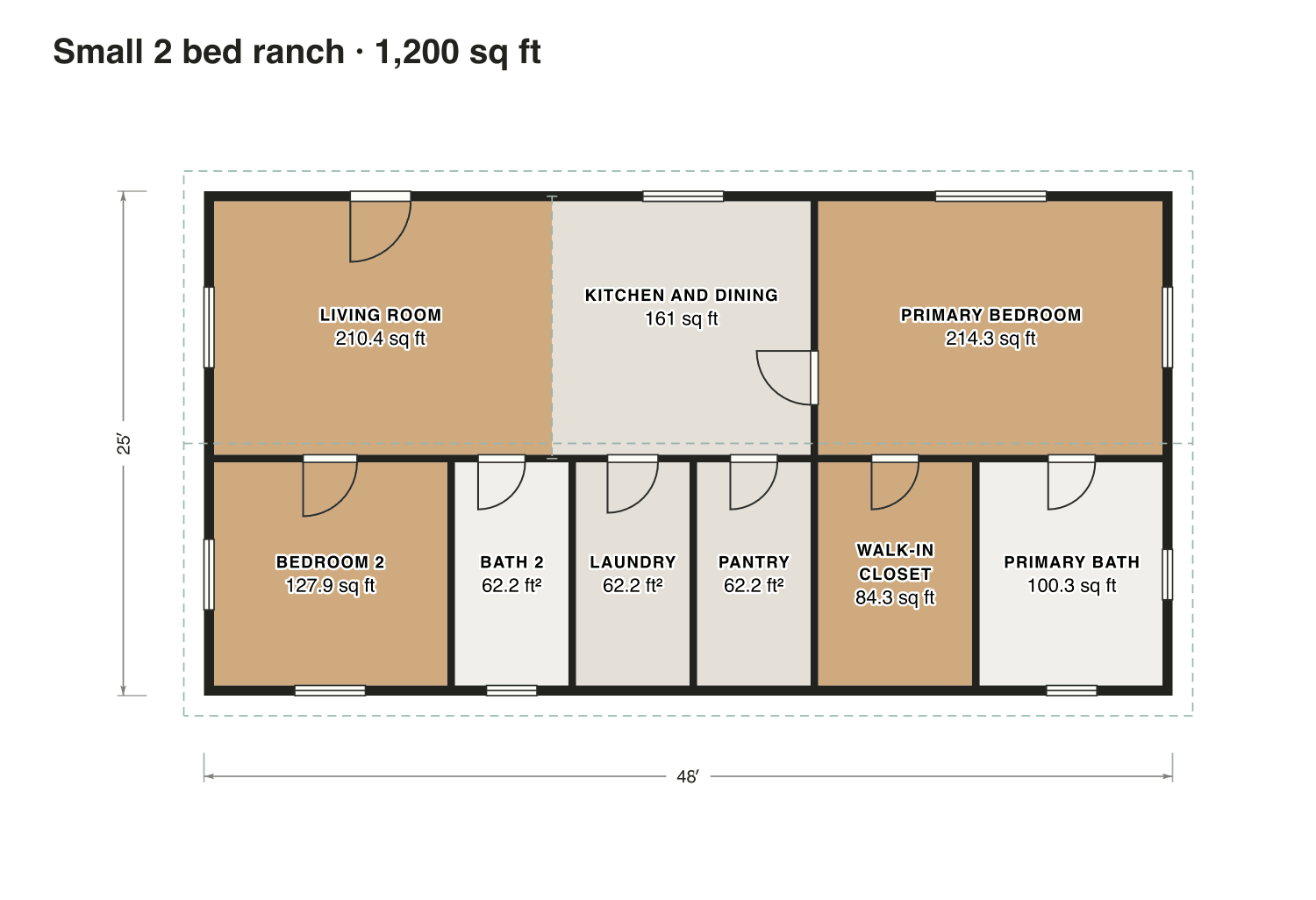

Small 2 bed ranch floor plan: 1,200 sq ft (111 m²) finished, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
48′ × 25′ outsideExample floor plan, not a construction drawing

Rooms · Small 2 bed ranch

Room areas, Small 2 bed ranch
RoomFloorSq ftCounts as
Living roomFloor 1210Finished, counts
Kitchen and diningFloor 1161Finished, counts
Bedroom 2Floor 1128Finished, counts
Bath 2Floor 162Finished, counts
LaundryFloor 162Finished, counts
PantryFloor 162Finished, counts
Primary bedroomFloor 1214Finished, counts
Walk-in closetFloor 184Finished, counts
Primary bathFloor 1100Finished, counts
Finished area, ANSI Z7651,200outside the walls

What counts

What counts in the square footage

The L-shaped plan has 2,105 sq ft of finished area and a 540 sq ft garage in the corner. ANSI Z765 lists the garage apart; the wall between them is measured to the middle.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Ranch house plans: questions

About these ranch house plans. Can’t find your answer? Send us a message.

What makes a home a ranch-style home?

One story, a long low shape, a wide roof with deep eaves, and often an attached garage. The rooms are all on one level.

What is a ranch house with a basement called?

Usually just a ranch with a basement; when the lower level opens to the yard it is a walkout ranch. See our house plans with a basement.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
