Craftsman house plans

A Craftsman house is the American Arts and Crafts home of about 1905 to 1930: a low roof with wide eaves, exposed rafter tails, tapered porch columns and lots of built in wood. Our three plans have 1,800 to 2,400 sq ft on one or two floors.

Plans
3
drawn to scale
Sizes
1,800 to 2,400 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

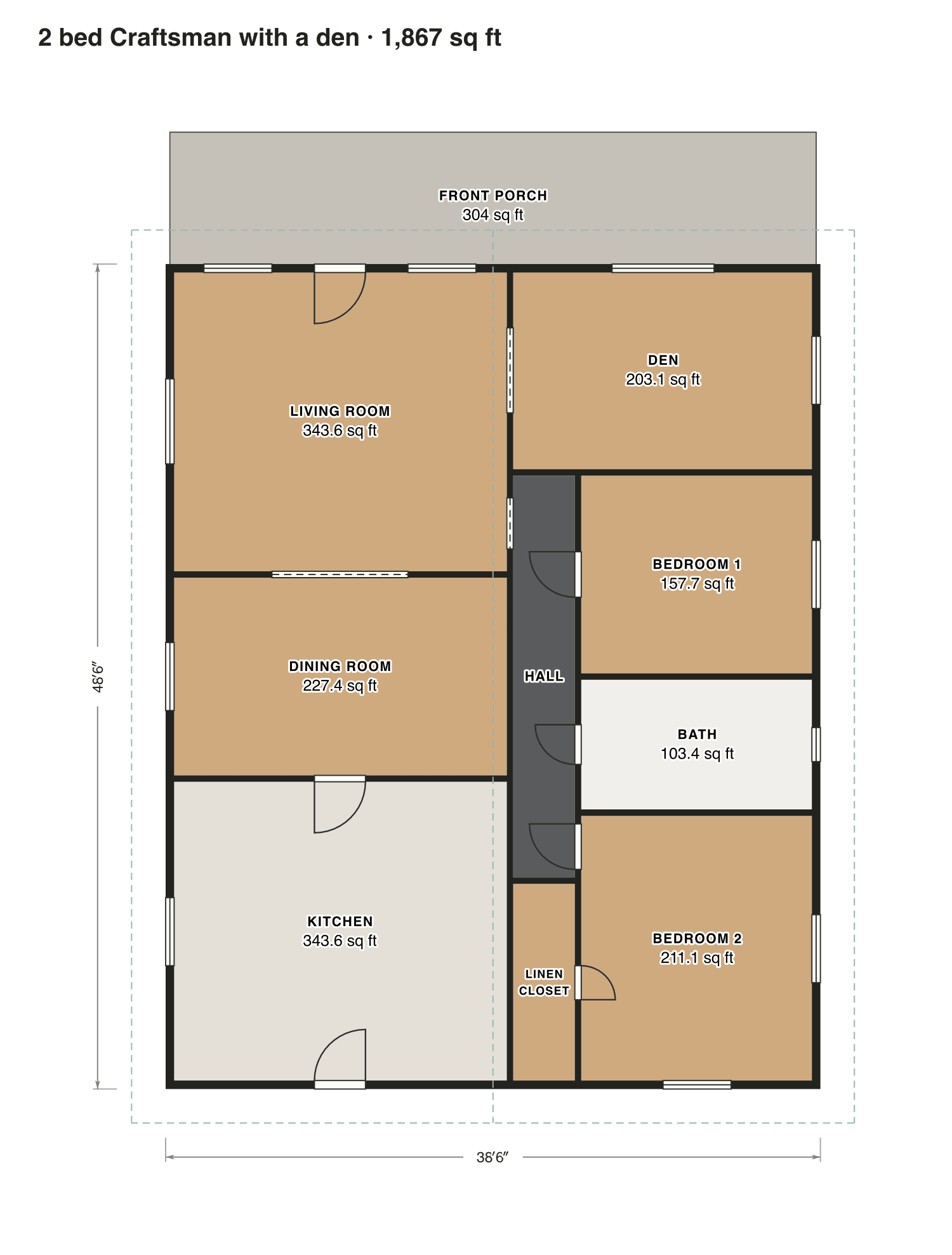

38′ 6″48′ 6″LIVING ROOM343.6 sq ftDEN203.1 sq ftBEDROOM 1157.7 sq ftBATH103.4 sq ftBEDROOM 2211.1 sq ftKITCHEN343.6 sq ftLINENCLOSETDINING ROOM227.4 sq ftHALLFRONT PORCH304 sq ft
2 bed Craftsman with a den

The plans

Craftsman house plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

2 bed Craftsman with a den

The original plan on this page: living, dining and kitchen stacked along one side, a den behind the porch and two bedrooms off a short hall.

Finished area
1,867 sq ft
173 m² · ANSI Z765
Not counted
304 sq ft
listed apart, see below
Layout
2 bed, 1 bath
one floor
  • 304 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

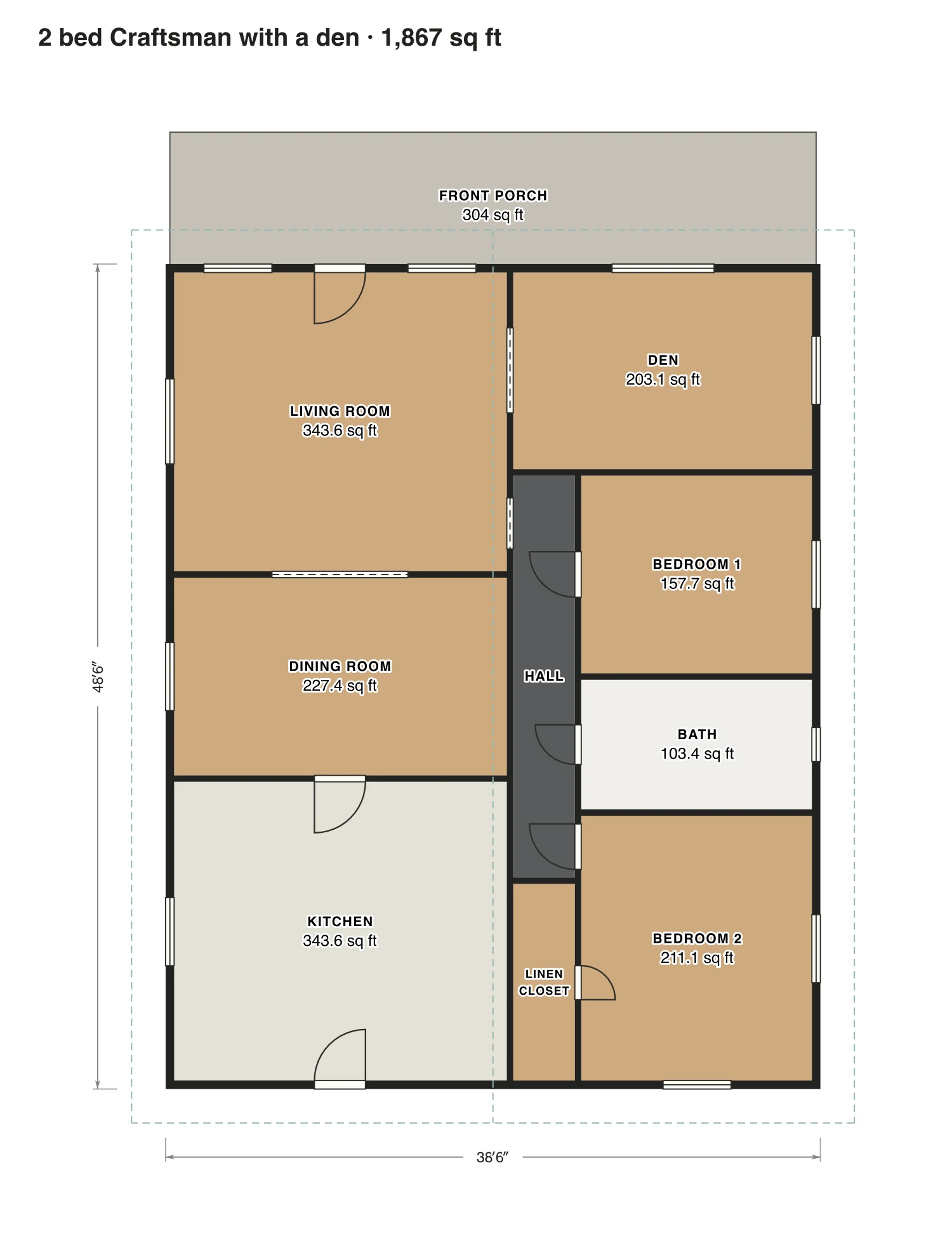

2 bed Craftsman with a den floor plan: 1,867 sq ft (173 m²) finished, 2 bed, 1 bath · one floor, drawn to scale with every room labeled.
39′ × 49′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed Craftsman with a den

Room areas, 2 bed Craftsman with a den
RoomFloorSq ftCounts as
Living roomFloor 1344Finished, counts
Dining roomFloor 1227Finished, counts
KitchenFloor 1344Finished, counts
DenFloor 1203Finished, counts
HallFloor 186Finished, counts
Bedroom 1Floor 1158Finished, counts
BathFloor 1103Finished, counts
Bedroom 2Floor 1211Finished, counts
Linen closetFloor 142Finished, counts
Front porchOutside304Outside, not counted
Finished area, ANSI Z7651,867outside the walls

3 bed Craftsman, one story

Sixty feet wide and thirty deep. The bedrooms line up along a hall on one end, the living room sits behind the porch, and a den and laundry fill the middle of the back.

Finished area
1,800 sq ft
167 m² · ANSI Z765
Not counted
224 sq ft
listed apart, see below
Layout
3 bed, 2 bath
one floor
  • 224 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

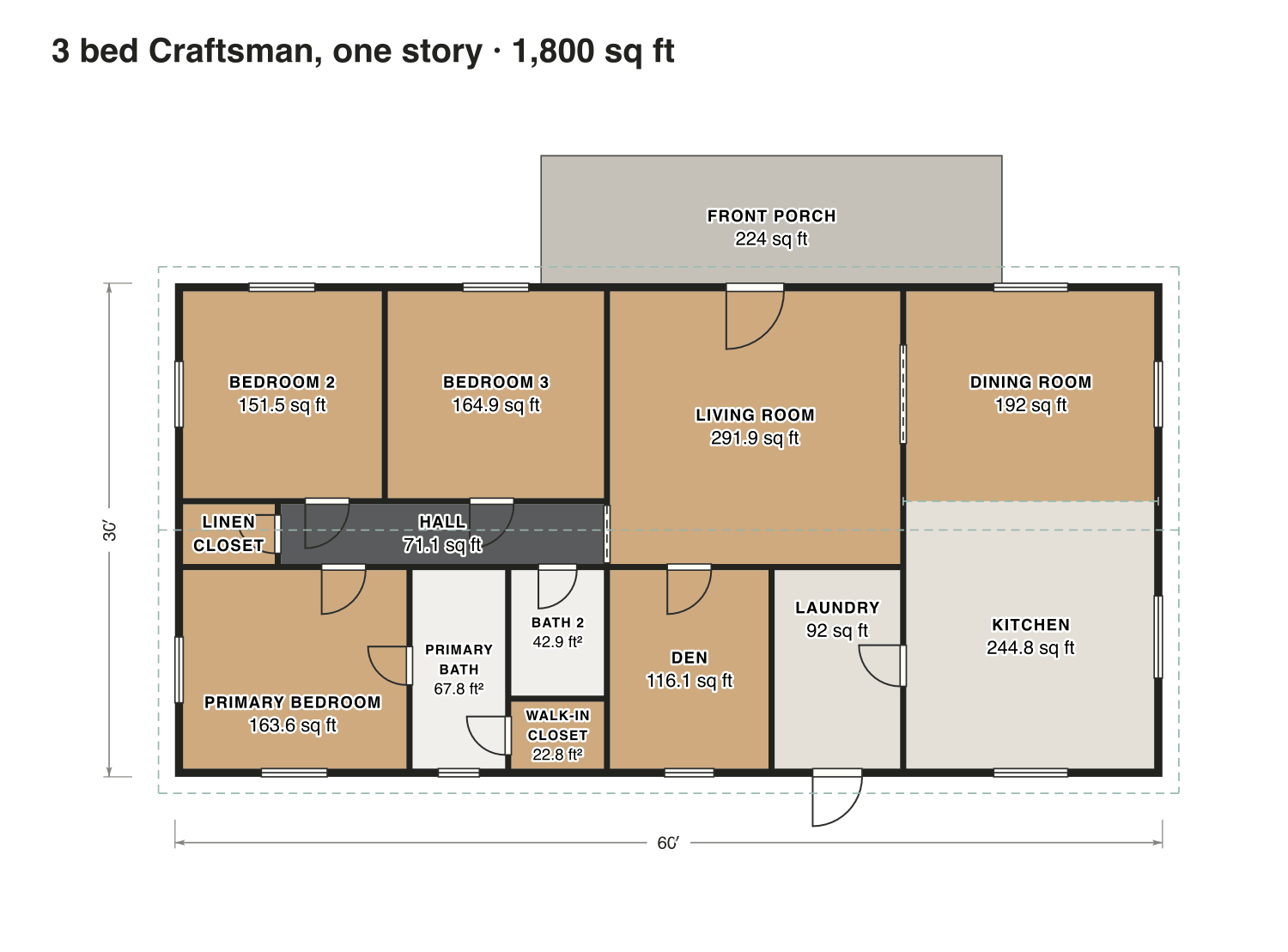

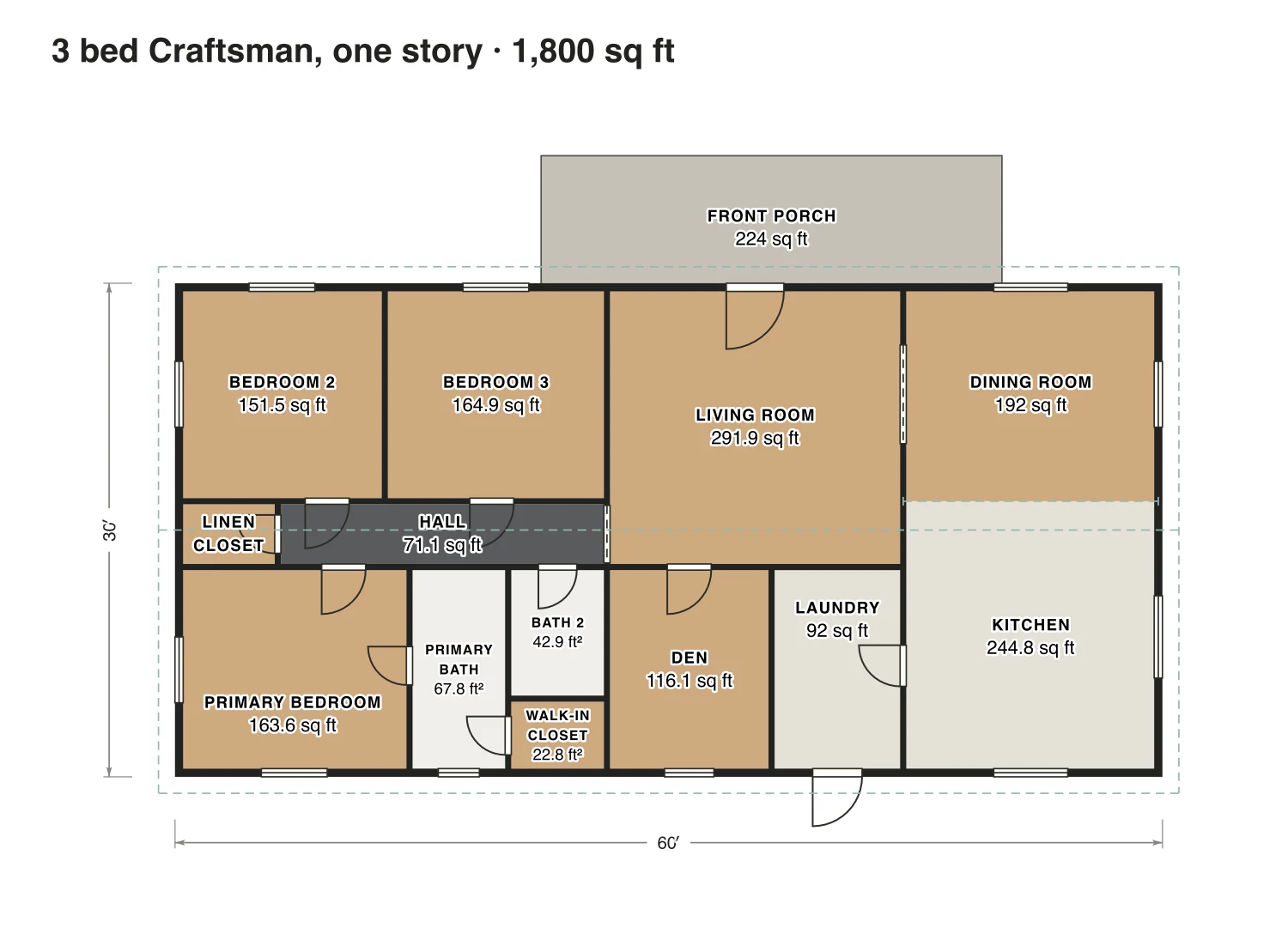

3 bed Craftsman, one story floor plan: 1,800 sq ft (167 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
60′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed Craftsman, one story

Room areas, 3 bed Craftsman, one story
RoomFloorSq ftCounts as
Bedroom 2Floor 1152Finished, counts
Bedroom 3Floor 1165Finished, counts
Linen closetFloor 120Finished, counts
HallFloor 171Finished, counts
Primary bedroomFloor 1164Finished, counts
Primary bathFloor 168Finished, counts
Bath 2Floor 143Finished, counts
Walk-in closetFloor 123Finished, counts
Living roomFloor 1292Finished, counts
Dining roomFloor 1192Finished, counts
KitchenFloor 1245Finished, counts
DenFloor 1116Finished, counts
LaundryFloor 192Finished, counts
Front porchOutside224Outside, not counted
Finished area, ANSI Z7651,800outside the walls

4 bed Craftsman on two floors

A porch across the whole front, a hall with the stair between dining and living rooms, a family room at the back. Four bedrooms and the laundry share the upper floor.

Finished area
2,400 sq ft
223 m² · ANSI Z765
Not counted
316 sq ft
listed apart, see below
Layout
4 bed, 2.5 bath
2 floors
  • 316 sq ft porch or deck
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

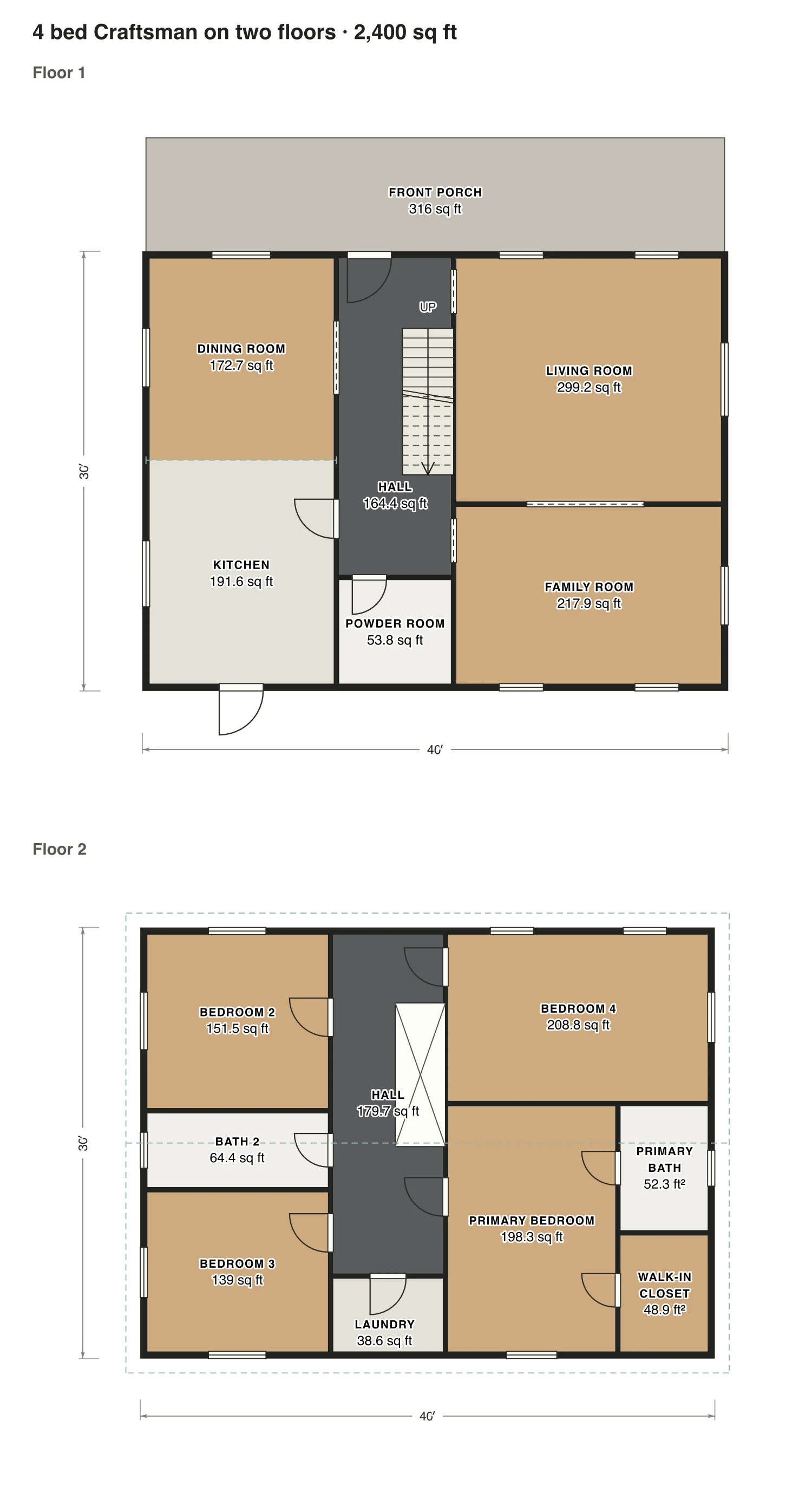

4 bed Craftsman on two floors floor plan: 2,400 sq ft (223 m²) finished, 4 bed, 2.5 bath · 2 floors, drawn to scale with every room labeled.
40′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed Craftsman on two floors

Room areas, 4 bed Craftsman on two floors
RoomFloorSq ftCounts as
Dining roomFloor 1173Finished, counts
KitchenFloor 1192Finished, counts
HallFloor 1164Finished, counts
Powder roomFloor 154Finished, counts
Living roomFloor 1299Finished, counts
Family roomFloor 1218Finished, counts
Bedroom 2Floor 2152Finished, counts
Bath 2Floor 264Finished, counts
Bedroom 3Floor 2139Finished, counts
HallFloor 2180Finished, counts
LaundryFloor 239Finished, counts
Bedroom 4Floor 2209Finished, counts
Primary bedroomFloor 2198Finished, counts
Primary bathFloor 252Finished, counts
Walk-in closetFloor 249Finished, counts
Front porchOutside316Outside, not counted
Finished area, ANSI Z7652,400outside the walls

What counts

What counts in the square footage

The front porch is the signature of a Craftsman and it is never floor area. On the two story plan it runs the full width and adds 316 sq ft outside the total. The den and the laundry are finished rooms, so they are in.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Craftsman house plans: questions

About these craftsman house plans. Can’t find your answer? Send us a message.

What makes a house a Craftsman home?

Honest materials and visible structure: wide eaves with brackets, a porch on thick tapered columns, windows with divided upper panes, and built in shelves, benches and cabinets inside.

What are the four types of Craftsman style homes?

People usually name the bungalow, the Prairie influenced Craftsman, the Mission style and the two story Foursquare. They share the porch, the wide roof and the woodwork; they differ in height and roof shape.

What are some ideas for a Craftsman style home?

Keep the porch deep enough to sit on, give the living room a fireplace with built in shelves on both sides, and put a den or office near the front door.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
