Example plans · 3 plans

Modern farmhouse floor plans

A modern farmhouse keeps the farmhouse layout (big kitchen, mudroom, porch) with simple modern lines and an open plan. Our three plans have 1,995 to 2,626 sq ft of finished space, on one floor or two.

Plans: 3; drawn to scale
Sizes: 1,995 to 2,626 sq ft; finished area, ANSI Z765

See the plans Open the first plan in the editor

Drawn Oct 2, 2026 · How we calculate · Example plans, not real addresses

4 bed modern farmhouse on two floors

The plans

Modern farmhouse floor plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

4 bed modern farmhouse on two floors

An open great room and kitchen, the primary suite and a mudroom downstairs; three bedrooms, a loft and a bonus room upstairs.

Finished area: 2,626 sq ft; 244 m² · ANSI Z765
Not counted: 352 sq ft; listed apart, see below
Layout: 4 bed, 3.5 bath; 2 floors

352 sq ft porch or deck

Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

4 bed modern farmhouse on two floors floor plan: 2,626 sq ft (244 m²) finished, 4 bed, 3.5 bath · 2 floors, drawn to scale with every room labeled. — 45′ × 30′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed modern farmhouse on two floors

Room areas, 4 bed modern farmhouse on two floors
Room	Floor	Sq ft	Counts as
Great room	Floor 1	294	Finished, counts
Kitchen	Floor 1	231	Finished, counts
Dining room	Floor 1	136	Finished, counts
Primary bedroom	Floor 1	145	Finished, counts
Primary bath	Floor 1	44	Finished, counts
Walk-in closet	Floor 1	30	Finished, counts
Stair hall	Floor 1	65	Finished, counts
Powder room	Floor 1	26	Finished, counts
Pantry	Floor 1	37	Finished, counts
Mudroom	Floor 1	88	Finished, counts
Laundry	Floor 1	99	Finished, counts
Bedroom 2	Floor 2	158	Finished, counts
Closet	Floor 2	24	Finished, counts
Bath 2	Floor 2	57	Finished, counts
Bedroom 3	Floor 2	146	Finished, counts
Bedroom 4	Floor 2	145	Finished, counts
Loft	Floor 2	196	Finished, counts
Hall	Floor 2	69	Finished, counts
Bath 3	Floor 2	77	Finished, counts
Landing	Floor 2	66	Finished, counts
Storage	Floor 2	65	Finished, counts
Bonus room	Floor 2	180	Finished, counts
Front porch	Outside	352	Outside, not counted
Finished area, ANSI Z765		2,626	outside the walls

3 bed modern farmhouse on one floor

A great room, kitchen and dining room in one open space behind a long porch, with the bedrooms split to both ends.

Finished area: 1,995 sq ft; 185 m² · ANSI Z765
Not counted: 452 sq ft; listed apart, see below
Layout: 3 bed, 2 bath; one floor

452 sq ft porch or deck

Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

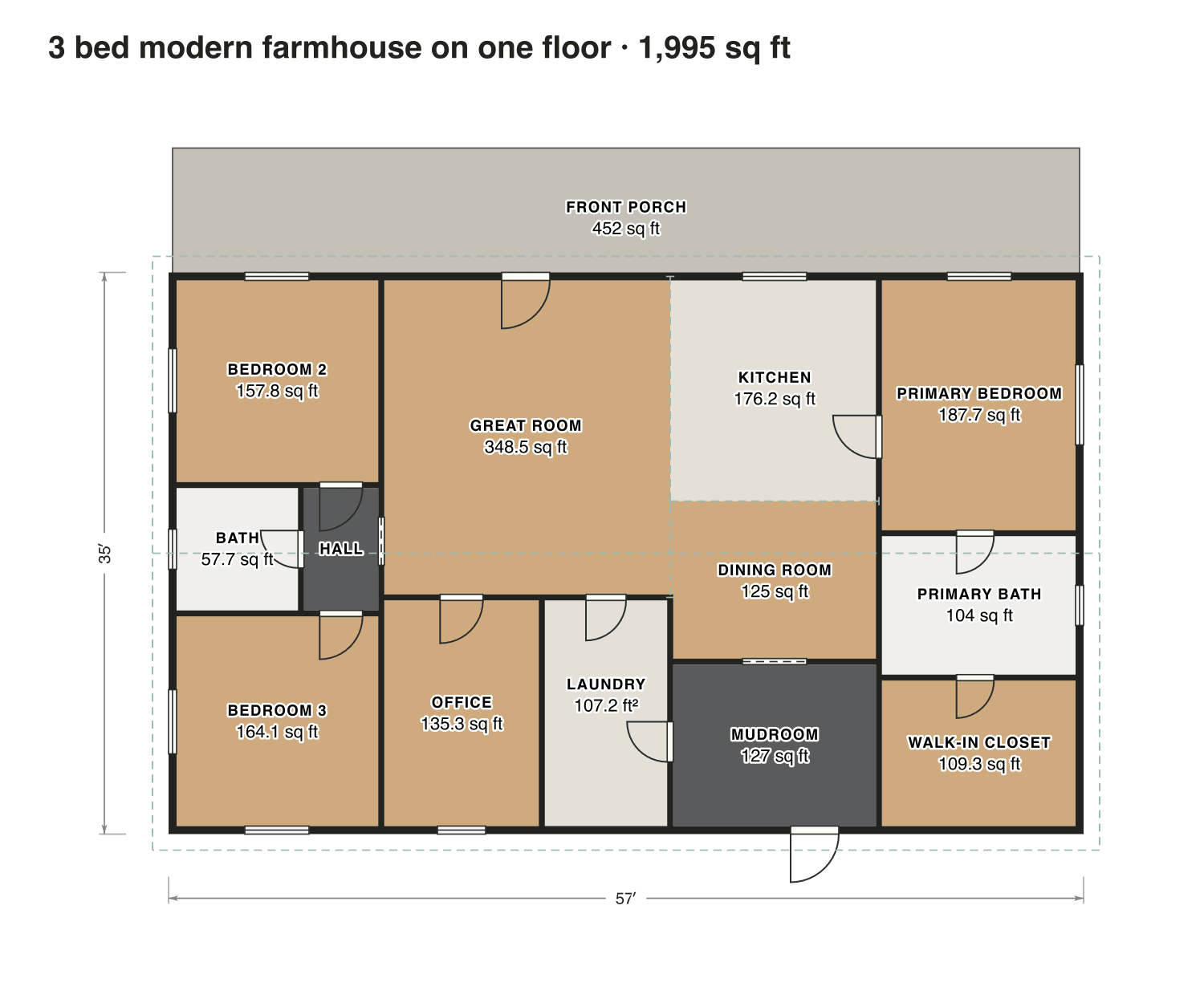

3 bed modern farmhouse on one floor floor plan: 1,995 sq ft (185 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled. — 57′ × 35′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed modern farmhouse on one floor

Room areas, 3 bed modern farmhouse on one floor
Room	Floor	Sq ft	Counts as
Bedroom 2	Floor 1	158	Finished, counts
Bath	Floor 1	58	Finished, counts
Hall	Floor 1	35	Finished, counts
Bedroom 3	Floor 1	164	Finished, counts
Great room	Floor 1	348	Finished, counts
Kitchen	Floor 1	176	Finished, counts
Dining room	Floor 1	125	Finished, counts
Office	Floor 1	135	Finished, counts
Laundry	Floor 1	107	Finished, counts
Mudroom	Floor 1	127	Finished, counts
Primary bedroom	Floor 1	188	Finished, counts
Primary bath	Floor 1	104	Finished, counts
Walk-in closet	Floor 1	109	Finished, counts
Front porch	Outside	452	Outside, not counted
Finished area, ANSI Z765		1,995	outside the walls

4 bed modern farmhouse with a bonus room

Four bedrooms on one floor and a two-car garage with a bonus room and a bath above it, reached by a stair from the garage.

Finished area: 2,404 sq ft; 223 m² · ANSI Z765
Not counted: 1,277 sq ft; listed apart, see below
Layout: 4 bed, 3 bath; 2 floors

881 sq ft garage, shop or storage
396 sq ft porch or deck

Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

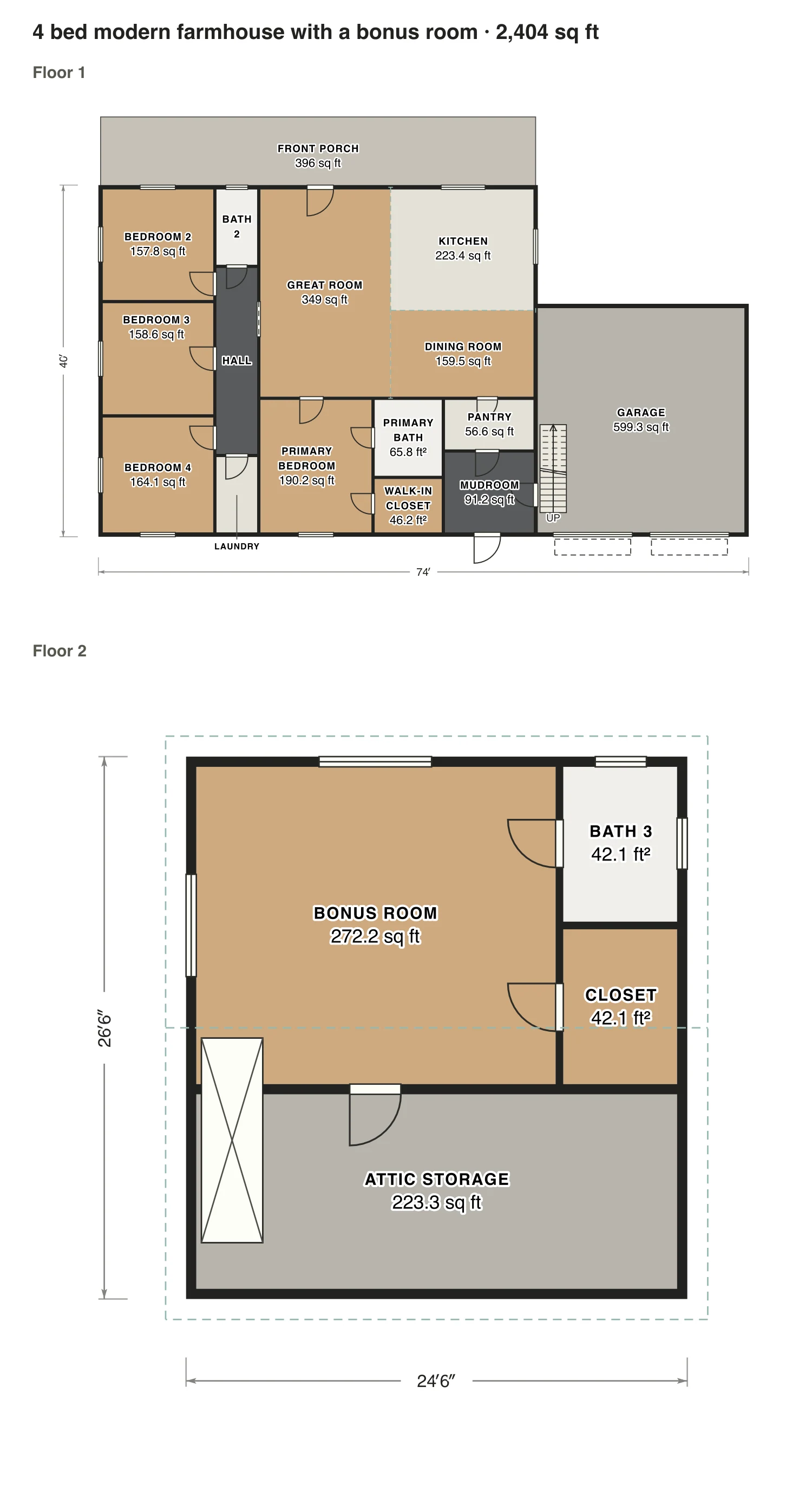

4 bed modern farmhouse with a bonus room floor plan: 2,404 sq ft (223 m²) finished, 4 bed, 3 bath · 2 floors, drawn to scale with every room labeled. — 74′ × 40′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed modern farmhouse with a bonus room

Room areas, 4 bed modern farmhouse with a bonus room
Room	Floor	Sq ft	Counts as
Bedroom 2	Floor 1	158	Finished, counts
Bedroom 3	Floor 1	159	Finished, counts
Bedroom 4	Floor 1	164	Finished, counts
Bath 2	Floor 1	40	Finished, counts
Hall	Floor 1	98	Finished, counts
Laundry	Floor 1	40	Finished, counts
Great room	Floor 1	349	Finished, counts
Kitchen	Floor 1	223	Finished, counts
Dining room	Floor 1	159	Finished, counts
Primary bedroom	Floor 1	190	Finished, counts
Primary bath	Floor 1	66	Finished, counts
Walk-in closet	Floor 1	46	Finished, counts
Pantry	Floor 1	57	Finished, counts
Mudroom	Floor 1	91	Finished, counts
Garage	Floor 1	599	Not finished, not counted
Bonus room	Floor 2	272	Finished, counts
Bath 3	Floor 2	42	Finished, counts
Closet	Floor 2	42	Finished, counts
Attic storage	Floor 2	223	Not finished, not counted
Front porch	Outside	396	Outside, not counted
Finished area, ANSI Z765		2,404	outside the walls

What counts

What counts in the square footage

The plan with a bonus room has 2,404 sq ft finished, including the bonus room over the garage. The garage below it and the attic storage behind the knee wall aren’t finished, so they are listed apart.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

Questions

Modern farmhouse plans: questions

About these modern farmhouse plans. Can’t find your answer? Send us a message.

Message us

info@squaremetry.com

What is the new modern farmhouse style?

The farmhouse layout with fewer details: simple gables, large windows, an open kitchen and living room, and usually a porch.

Does a bonus room over the garage count as square footage?

Yes, if it is finished, has a ceiling of at least 7 ft over at least half of it, and you reach it through finished space. Parts lower than 5 ft don’t count.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
