Modern house plans

Modern house plans favor simple shapes, open living areas and large windows, often under a flat or low-pitched roof. Our three plans run from 1,606 to 2,816 sq ft, on one floor or two, and each shows the area of every room.

Plans
3
drawn to scale
Sizes
1,606 to 2,816 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

59′ 6″32′LIVING ROOM343.7 sq ftDINING ROOM198.7 sq ftKITCHEN212.2 sq ftPRIMARY BEDROOM208.1 sq ftBEDROOM 2162.6 sq ftBATH 250.5 ft²HALL65 ft²BEDROOM 3163.5 sq ftMUDROOM135.3 sq ftPRIMARYBATH107.2 ft²WALK-INCLOSETLAUNDRY40.2 ft²
3 bed modern house with a flat roof

The plans

Modern house plans, 3 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

3 bed modern house with a flat roof

One long room for living, dining and cooking across the front, with the bedrooms and a mudroom behind it. The primary suite closes off one end.

Finished area
1,904 sq ft
177 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

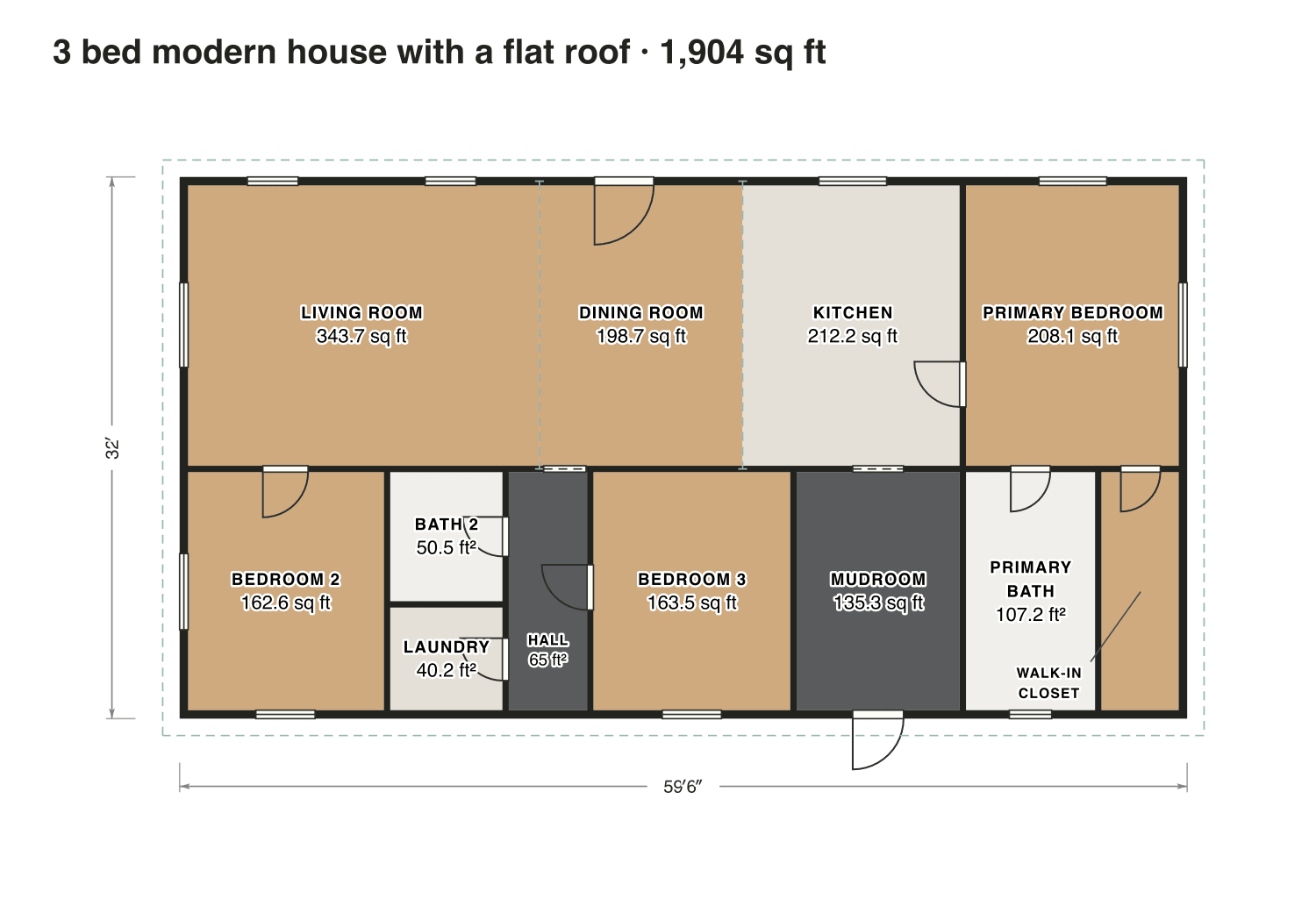

3 bed modern house with a flat roof floor plan: 1,904 sq ft (177 m²) finished, 3 bed, 2 bath · one floor, drawn to scale with every room labeled.
60′ × 32′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed modern house with a flat roof

Room areas, 3 bed modern house with a flat roof
RoomFloorSq ftCounts as
Living roomFloor 1344Finished, counts
Dining roomFloor 1199Finished, counts
KitchenFloor 1212Finished, counts
Primary bedroomFloor 1208Finished, counts
Bedroom 2Floor 1163Finished, counts
Bath 2Floor 151Finished, counts
LaundryFloor 140Finished, counts
HallFloor 165Finished, counts
Bedroom 3Floor 1163Finished, counts
MudroomFloor 1135Finished, counts
Primary bathFloor 1107Finished, counts
Walk-in closetFloor 164Finished, counts
Finished area, ANSI Z7651,904outside the walls

4 bed modern house on two floors

An open ground floor with a guest bedroom, office and mudroom; upstairs the primary suite and two bedrooms on either side of a wide landing.

Finished area
2,816 sq ft
262 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
4 bed, 3.5 bath
2 floors
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

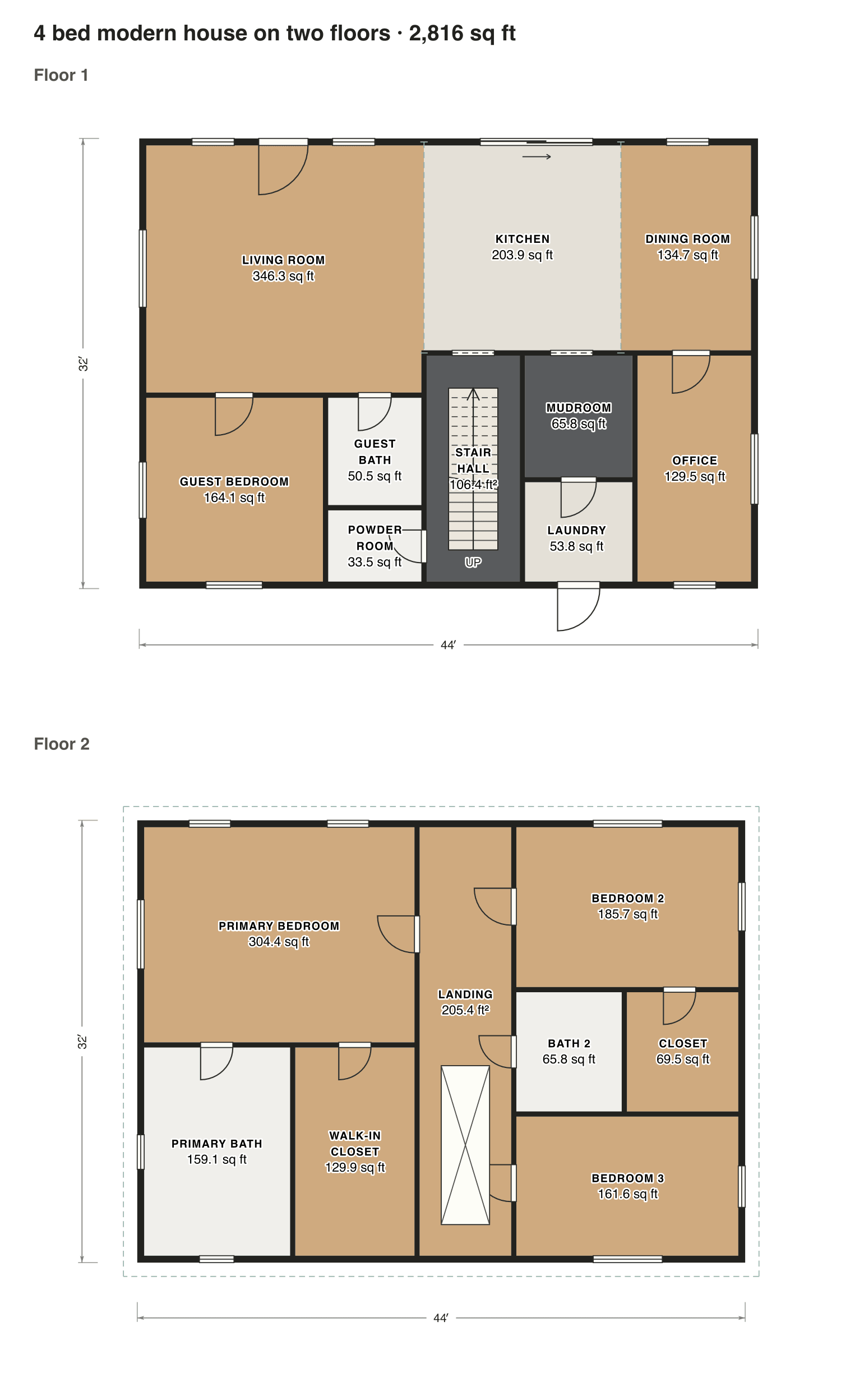

4 bed modern house on two floors floor plan: 2,816 sq ft (262 m²) finished, 4 bed, 3.5 bath · 2 floors, drawn to scale with every room labeled.
44′ × 32′ outsideExample floor plan, not a construction drawing

Rooms · 4 bed modern house on two floors

Room areas, 4 bed modern house on two floors
RoomFloorSq ftCounts as
Living roomFloor 1346Finished, counts
KitchenFloor 1204Finished, counts
Dining roomFloor 1135Finished, counts
Guest bedroomFloor 1164Finished, counts
Guest bathFloor 151Finished, counts
Powder roomFloor 134Finished, counts
Stair hallFloor 1106Finished, counts
MudroomFloor 166Finished, counts
LaundryFloor 154Finished, counts
OfficeFloor 1129Finished, counts
Primary bedroomFloor 2304Finished, counts
Primary bathFloor 2159Finished, counts
Walk-in closetFloor 2130Finished, counts
LandingFloor 2205Finished, counts
Bedroom 2Floor 2186Finished, counts
Bath 2Floor 266Finished, counts
ClosetFloor 270Finished, counts
Bedroom 3Floor 2162Finished, counts
Finished area, ANSI Z7652,816outside the walls

3 bed modern house for a narrow lot

Only 22 ft wide, so it fits a 30 ft lot. Living, dining and kitchen stack from front to back; the three bedrooms are upstairs.

Finished area
1,606 sq ft
149 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
3 bed, 2 bath
2 floors
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

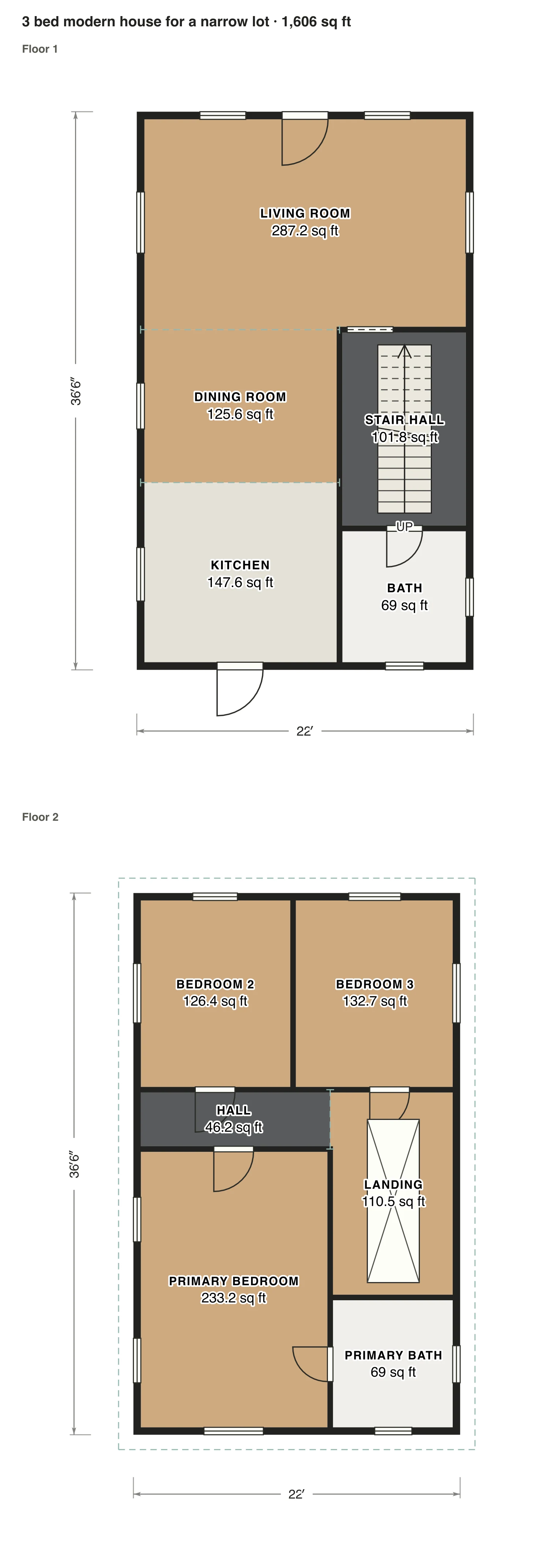

3 bed modern house for a narrow lot floor plan: 1,606 sq ft (149 m²) finished, 3 bed, 2 bath · 2 floors, drawn to scale with every room labeled.
22′ × 37′ outsideExample floor plan, not a construction drawing

Rooms · 3 bed modern house for a narrow lot

Room areas, 3 bed modern house for a narrow lot
RoomFloorSq ftCounts as
Living roomFloor 1287Finished, counts
Dining roomFloor 1126Finished, counts
KitchenFloor 1148Finished, counts
Stair hallFloor 1102Finished, counts
BathFloor 169Finished, counts
Bedroom 2Floor 2126Finished, counts
Bedroom 3Floor 2133Finished, counts
HallFloor 246Finished, counts
LandingFloor 2111Finished, counts
Primary bedroomFloor 2233Finished, counts
Primary bathFloor 269Finished, counts
Finished area, ANSI Z7651,606outside the walls

What counts

What counts in the square footage

An open plan has no walls between kitchen, dining and living, but each zone still has a size: we measure every zone on its own and add them up. The total follows ANSI Z765, measured to the outside of the walls.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

Modern house plans: questions

About these modern house plans. Can’t find your answer? Send us a message.

What are some plans for a tiny modern house?

Start small and simple: one open room, one bedroom and a bathroom under a flat or single-slope roof. Our tiny house and ADU plans are good starting points.

Does a flat roof change the square footage?

No. The square footage is the finished floor area, measured to the outside of the walls. The roof only matters where it makes a ceiling lower than 7 ft.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
