2 bedroom tiny house plans

A two bedroom tiny house finds a second place to sleep in a very small home: up in a loft, or as a second room on a wider foundation. Our two plans have 289 to 576 sq ft of finished floor. See the 2 bedroom tiny house plans below, drawn to scale and measured room by room.

Plans
2
drawn to scale
Sizes
289 to 576 sq ft
finished area, ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

34′8′ 6″BEDROOM71.7 sq ftLIVING ROOM81.1 sq ftKITCHEN51.1 sq ftBATH38 ft²
2 bed tiny house on a trailer, 8.5 × 34 ft

The plans

2 bedroom tiny house plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

2 bed tiny house on a trailer, 8.5 × 34 ft

A bedroom with a door at the hitch end, then the living room, a kitchen and a bathroom in a row. Over the kitchen and bath a ladder leads to the loft bedroom under a single slope roof.

Finished area
289 sq ft
27 m² · ANSI Z765
Not counted
108 sq ft
listed apart, see below
Layout
2 bed, 1 bath
2 floors
  • 108 sq ft under 5 ft
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

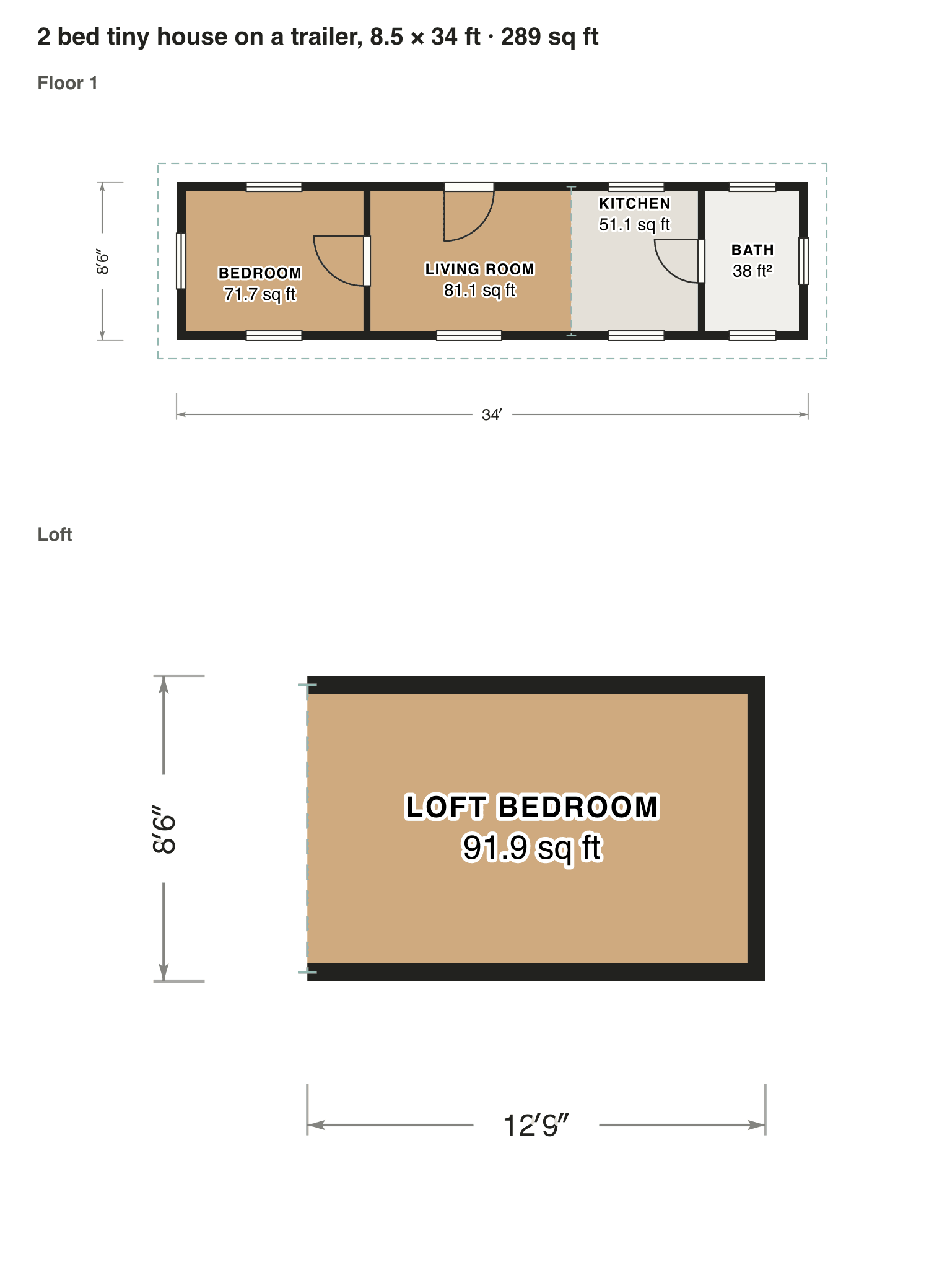

2 bed tiny house on a trailer, 8.5 × 34 ft floor plan: 289 sq ft (27 m²) finished, 2 bed, 1 bath · 2 floors, drawn to scale with every room labeled.
34′ × 9′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed tiny house on a trailer, 8.5 × 34 ft

Room areas, 2 bed tiny house on a trailer, 8.5 × 34 ft
RoomFloorSq ftCounts as
BedroomFloor 172Finished, counts
Living roomFloor 181Finished, counts
KitchenFloor 151Finished, counts
BathFloor 138Finished, counts
Loft bedroomLoft92Under 5 ft, not counted
Finished area, ANSI Z765289outside the walls

2 bed tiny house on a foundation, 24 × 24 ft

Two bedrooms one behind the other along the left side, the living room at the front, and a narrow kitchen with a back door. A small hall off the living room leads to the bath.

Finished area
576 sq ft
54 m² · ANSI Z765
Not counted
Nothing
all of it is finished space
Layout
2 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

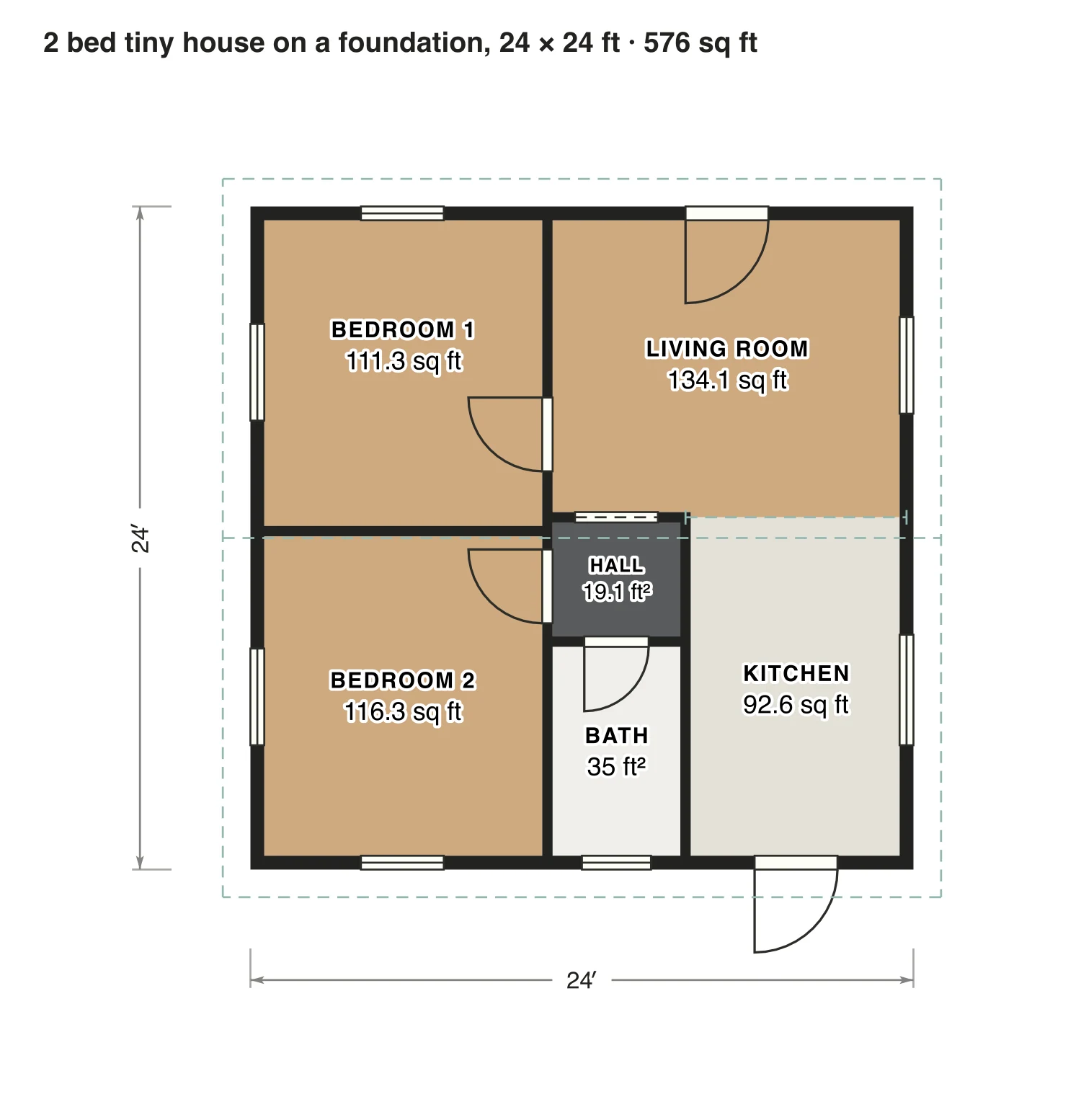

2 bed tiny house on a foundation, 24 × 24 ft floor plan: 576 sq ft (54 m²) finished, 2 bed, 1 bath · one floor, drawn to scale with every room labeled.
24′ × 24′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed tiny house on a foundation, 24 × 24 ft

Room areas, 2 bed tiny house on a foundation, 24 × 24 ft
RoomFloorSq ftCounts as
Bedroom 1Floor 1111Finished, counts
Bedroom 2Floor 1116Finished, counts
Living roomFloor 1134Finished, counts
HallFloor 119Finished, counts
BathFloor 135Finished, counts
KitchenFloor 193Finished, counts
Finished area, ANSI Z765576outside the walls

What counts

What counts in the square footage

On the trailer the second bedroom is a loft of 108 sq ft, all below 5 ft, so it never adds to the 289 sq ft downstairs. The 24 × 24 plan has no loft and both bedrooms count in full, which takes it past the 400 sq ft tiny house limit.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

2 bedroom tiny house plans: questions

About these 2 bedroom tiny house plans. Can’t find your answer? Send us a message.

What is the best layout for a tiny home with two bedrooms?

Give each bedroom some distance: one at each end, or one downstairs and one in the loft. Keep the bathroom near the kitchen so the pipes stay short.

Can a loft count as a bedroom?

For square footage only the part with at least 5 ft of headroom counts. Whether a loft may be called a bedroom is up to your local code, which usually asks for a ceiling height, a window you can escape through and a safe stair or ladder.

Can a tiny house have 3 bedrooms?

Within 400 sq ft only with lofts: one bedroom on the ground floor and a loft over each end. Two real bedrooms on one floor already need more room, as the 24 × 24 plan shows.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
