2 bedroom apartment floor plans

A 2-bedroom apartment has two bedrooms, a living area and a kitchen on one floor of a building, with one or two baths. Our plans measure 888 and 1,002 sq ft inside the walls.

Plans
2
drawn to scale
Sizes
888 to 1,002 sq ft
inside the walls or ANSI Z765
See the plans Open the first plan in the editor

· How we calculate · Example plans, not real addresses

34′ 6″28′ 6″LIVING ROOM255.7 sq ftKITCHEN AND DINING226.6 sq ftSTORAGEBEDROOM 1145.2 sq ftBATH42.5 ft²BEDROOM 2146 sq ftHALL26 sq ft
2 bed apartment with one bath

The plans

2 bedroom apartment floor plans, 2 examples

Each plan is drawn to scale and measured room by room. Open one in the editor and change it to fit your lot.

2 bed apartment with one bath

Both bedrooms open off a small inner hall with the bath, away from the front door. The kitchen and dining area and the living room share the windows, and a storage room holds bikes or a washer.

Inside the walls
888 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
2 bed, 1 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

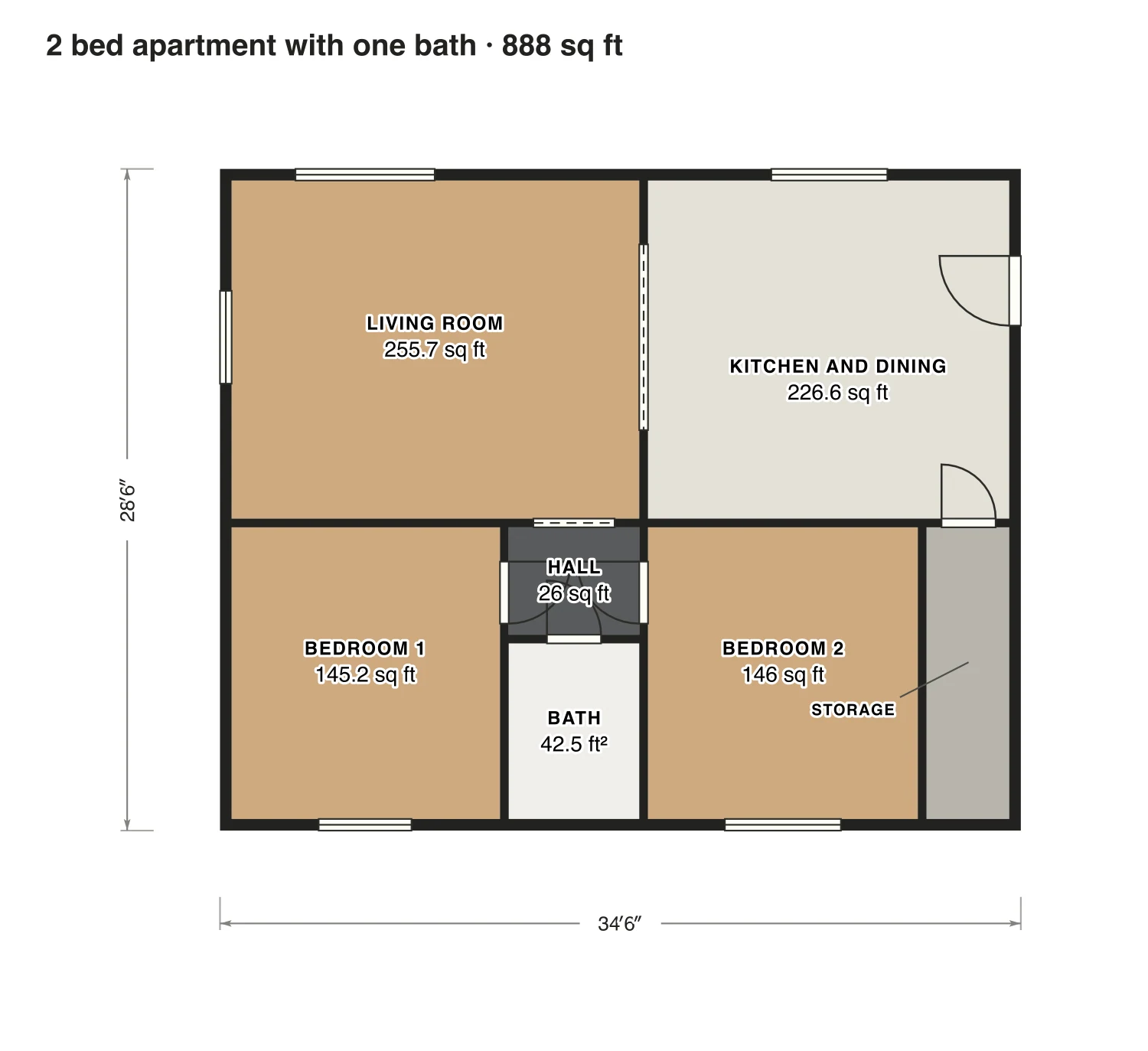

2 bed apartment with one bath floor plan: 888 sq ft (82 m²) inside the walls, 2 bed, 1 bath · one floor, drawn to scale with every room labeled.
35′ × 29′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed apartment with one bath

Room areas, 2 bed apartment with one bath
RoomFloorSq ftCounts as
Living roomFloor 1256Finished, counts
Kitchen and diningFloor 1227Finished, counts
Bedroom 1Floor 1145Finished, counts
HallFloor 126Finished, counts
BathFloor 143Finished, counts
Bedroom 2Floor 1146Finished, counts
StorageFloor 145Finished, counts
Rooms inside the walls888

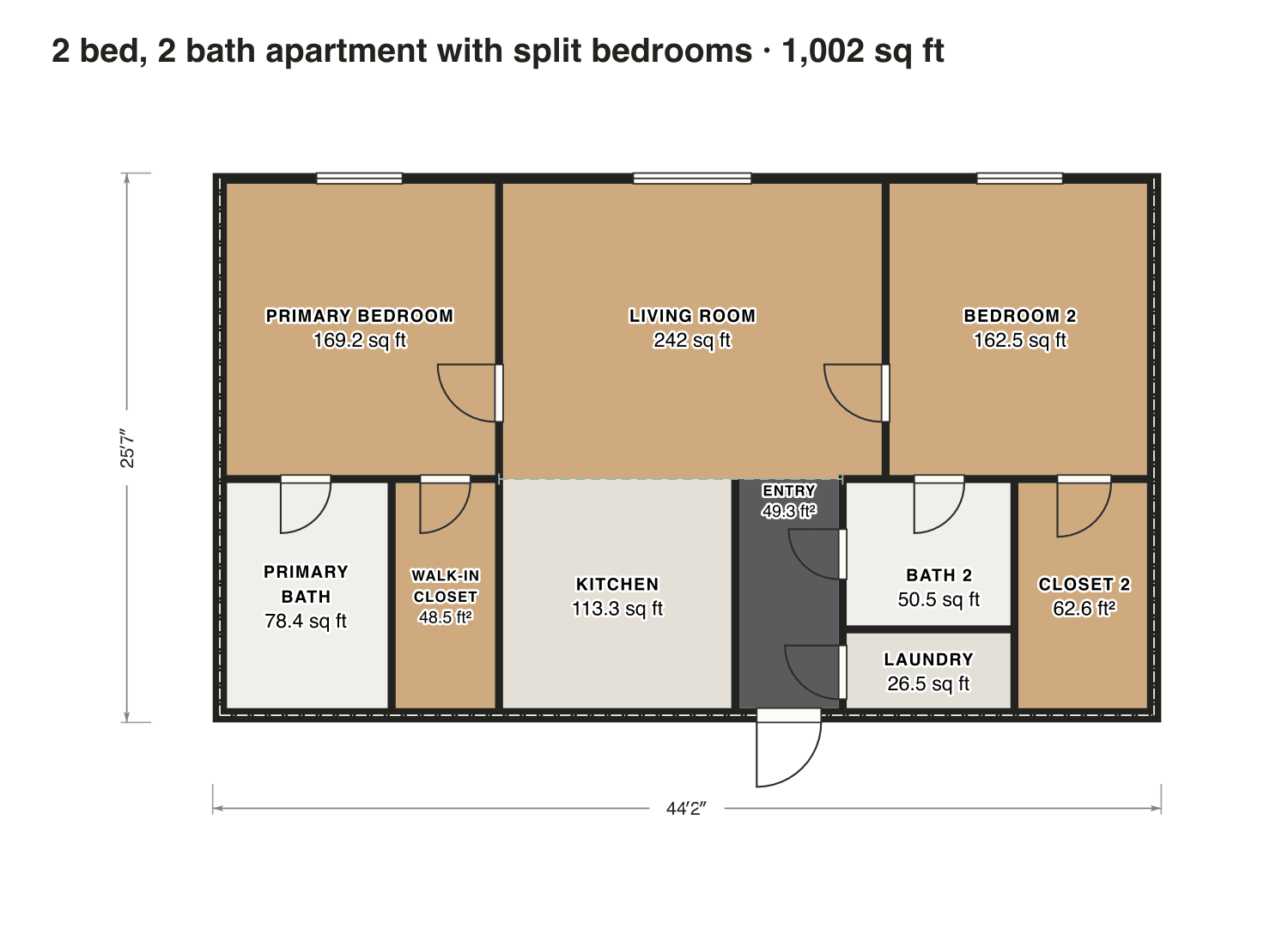

2 bed, 2 bath apartment with split bedrooms

The living room sits between the two bedrooms, so each has a quiet end of its own. The primary has a walk-in closet and bath; the second bath also opens to the entry for guests.

Inside the walls
1,002 sq ft
rooms added up
Not counted
Nothing
all of it is finished space
Layout
2 bed, 2 bath
one floor
Open in the editor Download the plan file

Opens as your own plan with the same numbers. Save the drawing (PNG)

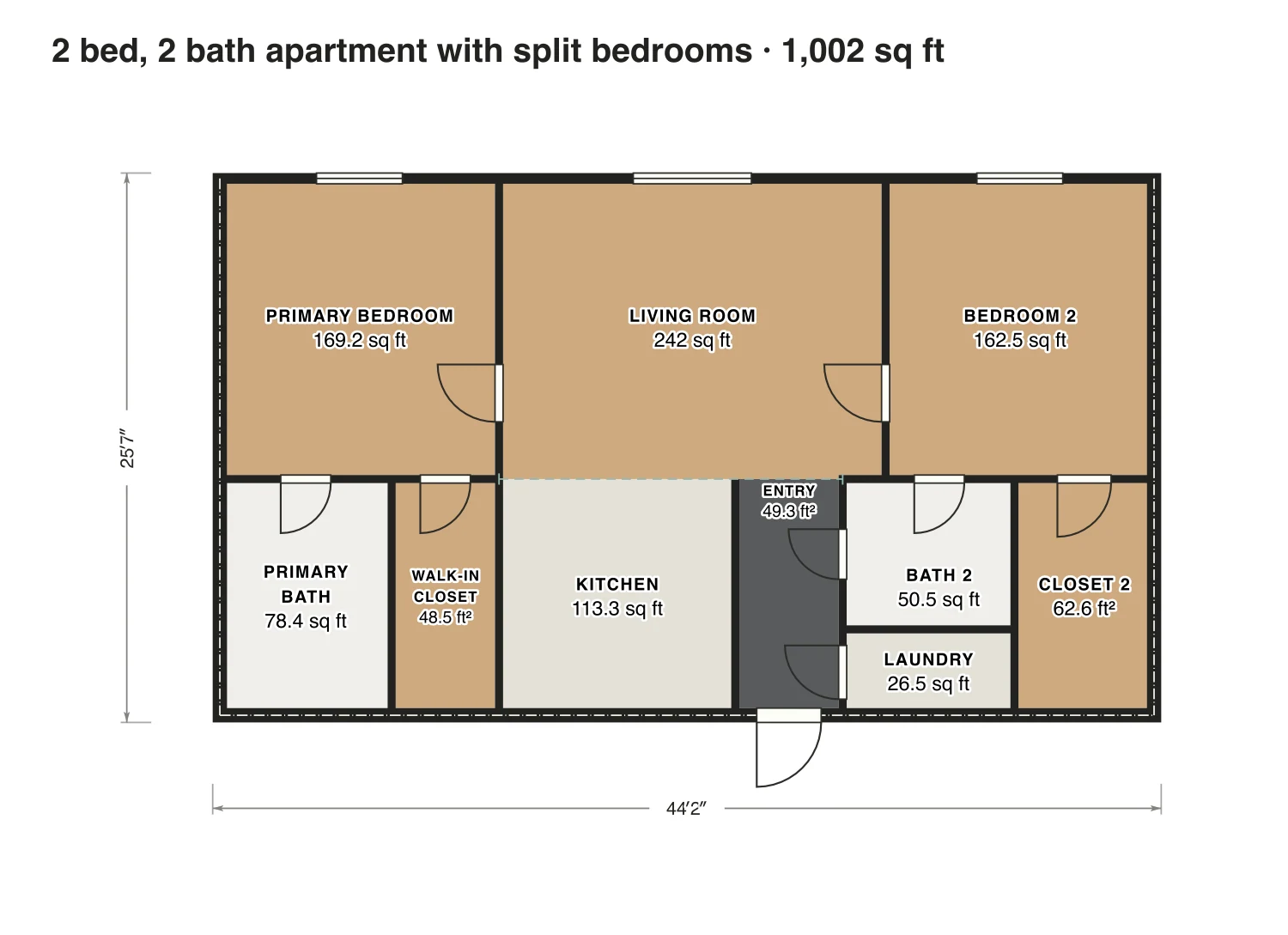

2 bed, 2 bath apartment with split bedrooms floor plan: 1,002 sq ft (93 m²) inside the walls, 2 bed, 2 bath · one floor, drawn to scale with every room labeled.
44′ × 26′ outsideExample floor plan, not a construction drawing

Rooms · 2 bed, 2 bath apartment with split bedrooms

Room areas, 2 bed, 2 bath apartment with split bedrooms
RoomFloorSq ftCounts as
Primary bedroomFloor 1169Finished, counts
Primary bathFloor 178Finished, counts
Walk-in closetFloor 148Finished, counts
Living roomFloor 1242Finished, counts
KitchenFloor 1113Finished, counts
EntryFloor 149Finished, counts
Bedroom 2Floor 1162Finished, counts
Bath 2Floor 151Finished, counts
LaundryFloor 127Finished, counts
Closet 2Floor 163Finished, counts
Rooms inside the walls1,002

What counts

What counts in the square footage

For apartments the size inside the walls is the usual number. The split plan has 1,002 sq ft inside and 1,130 sq ft to the outer face of its walls; the gap is the walls themselves, including the thick ones to the neighbors and the hall.

Each room is measured inside its walls. The finished area of a house is measured to the outside of the exterior walls (ANSI Z765), so it is larger than the rooms added up.

More plans

Related plans and sizes

Questions

2 bedroom apartment floor plans: questions

About these 2 bedroom apartment plans. Can’t find your answer? Send us a message.

What is a split bedroom apartment?

A layout with the bedrooms at opposite ends of the unit, usually each with its own bath. It suits roommates or a parent and an older child, because the bedrooms share no wall.

How big is a 2 bedroom apartment?

Many are between about 800 and 1,100 sq ft inside. Our plans have 888 and 1,002 sq ft; the split layout needs more, because it has two baths.

Can I change these plans?

Yes. Click Open in the editor under a plan and it opens as your own plan in the Squaremetry editor, with the same numbers as on this page. Move a wall and every area and the total update.

Is this a construction drawing?

No. This is an example floor plan, not a construction drawing. The Squaremetry team drew it for this page; it has no address. For a permit you need drawings from a qualified designer.
