Model: select faces, edges and groups

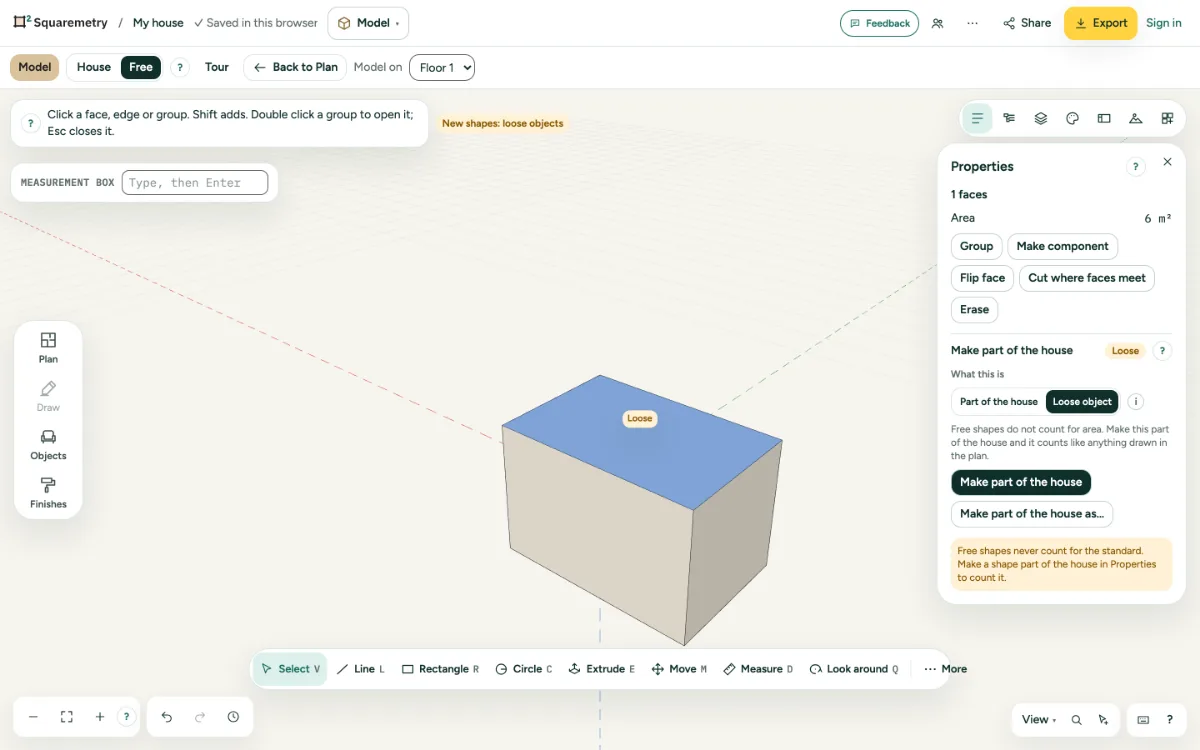

Click to choose a face, an edge or a group. What you choose is what Move, Rotate, Scale and Properties work on.

1. 1. Click

   Press V and click a face, an edge or a group. Shift adds to the choice or takes away.

2. 2. Double and triple click

   Double click a face to take its edges too. Click three times to choose everything that is joined to it. Double click a group to open it.

3. 3. Everything

   ⌘A chooses everything in what is open. Click in empty space, or press Esc, to choose nothing.

4. 4. The house

   Click a wall or the roof of the house to see that it counts. From there you can make it a free shape (see Convert).

Shortcuts

V

Model: select

⌘A

Select all

Esc

Cancel, or let go

On Windows and Linux, use Ctrl where the Mac has ⌘.

Messages you may see

• Choose something first.

Related

• Model: move and copy, also in a row
• Model: groups and components
• Model: build onto the house, or model freely
